Stereo microscopes, also known as dissecting microscopes, have long been indispensable tools in fields ranging from biology and materials science to quality control in manufacturing. Traditionally valued for their three-dimensional viewing capabilities and versatility, these microscopes have undergone a transformative leap with the integration of cameras. Cameras have turned stereo microscopes into tools not just for observation but also for documentation, analysis, and communication.
Here we explores the role of cameras in stereo microscopes, discussing their types, benefits, and factors to consider when choosing one for your application.
The Fundamentals of Stereo Microscopes: A Quick Review
Stereo microscopes provide a 3D view of specimens by using separate optical paths for each eye. This capability makes them ideal for applications requiring depth perception, such as dissecting specimens, examining small components, or performing precision tasks. They come in two primary configurations:
- Binocular Stereo Microscopes: Designed for direct observation through two eyepieces.

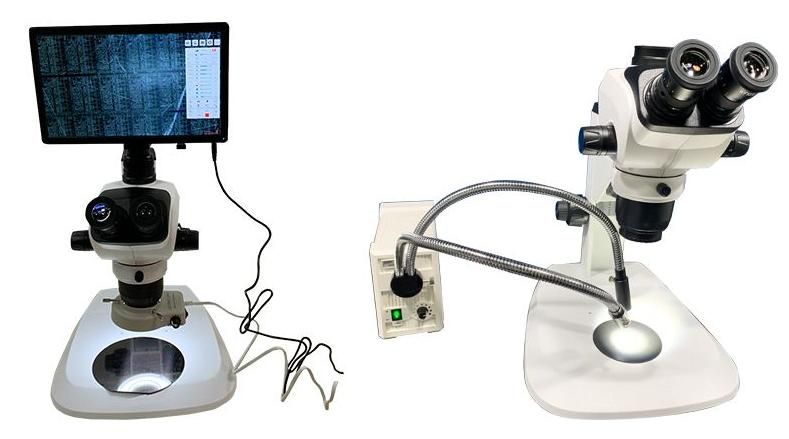

- Trinocular Stereo Microscopes: Equipped with a third port for attaching cameras without compromising the user’s ability to observe through the eyepieces.
The addition of a camera enables users to capture images and videos, stream live views, and conduct measurements or analyses using specialized software.
Why Cameras Became Essential
The need to document, analyze, and share microscopic observations has made cameras integral to modern stereo microscopy. Whether in research labs, classrooms, or production facilities, cameras facilitate:
- Documentation: High-resolution images and videos provide permanent records of observations.
- Collaboration: Real-time streaming enables remote teams to view and discuss findings simultaneously.
- Analysis: Software integration allows users to measure, annotate, and analyze captured data.
- Education: Teachers and trainers can project images onto large screens for group viewing.
In short, cameras have elevated stereo microscopes from observation-only tools to multifaceted instruments for a wide array of applications.

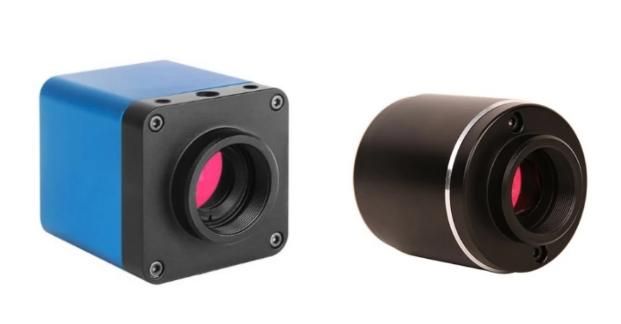

Types of Cameras for Stereo Microscopes: Tailoring to Your Needs
Choosing the right camera depends on the application and the level of detail required. If you have special needs, Scopelab can also customize stereo microscopes for you. Below are the common types of cameras and their features:
| Feature/Camera Type | USB Camera | HDMI Camera | Wi-Fi/Ethernet Camera | DSLR/Mirrorless + Adapter | Integrated Solution |
| PC Required? | Yes | No (for live view) | Yes (for advanced) / No (live stream) | Yes | Often No |
| Live View Quality | Moderate (2.0), Good (3.0) | Excellent (Real-time) | Good | Varies, often slower than dedicated | Excellent |
| Resolution Range | 1MP – 20+ MP | 2MP – 4K | 5MP – 20+ MP | 12MP – 40+ MP | Optimized for system |
| Frame Rate | Varies, 5-60+ FPS | Often 30-60 FPS | Varies | Varies, often lower for live | Optimized for system |
| Software | Full-featured PC software | Basic On-board, Some PC | Full-featured PC/App | Camera’s own software + imaging | Proprietary, User-friendly |
| Data Storage | PC Hard Drive | SD Card/USB Drive | PC Hard Drive/Network | Camera’s SD Card | Internal/SD Card |
| Collaboration | Via PC sharing | Direct Monitor View | Excellent (Remote) | Via PC sharing | Monitor/Network |
| Cost | Low to Mid | Mid | Mid to High | High | Mid to High |
| Best For | General documentation, teaching | Fast inspection, group viewing | Remote work, multi-user access | Publication, high-end research | Streamlined workflow, dedicated use |
Benefits of Stereo Microscopes with Cameras
Integrating a camera into a stereo microscope unlocks a wealth of benefits:
- Enhanced Collaboration: Live sharing of observations in team environments improves decision-making and reduces the need for multiple users to alternate on the eyepieces.
- Streamlined Documentation: Automatically save images or videos with metadata for easier record-keeping.
- Improved Workflow Efficiency: Fast switching between observation, capture, and analysis saves time.
- Educational Utility: Visual demonstrations and tutorials become more engaging with live projections.
- Flexibility in Analysis: Software tools can measure dimensions, add annotations, and even perform 3D reconstructions.
Key Considerations When Choosing a Camera for Your Stereo Microscope
When selecting a camera, consider the following:
| Factor | Why It Matters |
| Resolution | Determines the level of detail in captured images and videos; higher resolution is better for analysis. |
| Frame Rate | Affects video smoothness; essential for observing fast-moving subjects. |
| Connectivity | Ensure compatibility with your existing hardware (e.g., USB, HDMI, Wi-Fi). |
| Software Compatibility | Check for integrated analysis tools and support for operating systems. |
| Ease of Integration | Trinocular ports or adapters should allow for easy and secure camera attachment. |
By carefully evaluating these considerations, users can select a camera that not only meets their current needs but also provides the flexibility for future applications, ensuring their stereo microscope with camera remains a valuable asset.
As a supplier of stereo microscopes, Scope also provides a wide range of micoscope camera options. Welcome to consult us.
