HS-72 LED Ring Light

  • The brightness of the four partitions can be adjusted
  • Stable performance, suitable for stereo microscopes
  • Reliability and Durability
  • Low Power Consumption, Super Brightness
  • Metal Shell

Click the button below to contact us:


HS-72 LED ring light has four levels of light adjustment, and the brightness of the light can also be adjusted. It is mainly used on our stereo microscope to illuminate the sample. This is the reflected light source. Please adjust the brightness according to your needs when using it.

| Features of HS-72 LED Ring Light

  1. Intensity Adjustment, Good Variable Control Permit Gradual Increase in Brightness with Four-zone Lighting Control Separately
  2. Reliability and Durability
  3. Low Power Consumption, Super Brightness
  4. Metal Shell
  5. Reasonable Design, Uniformity Light, Non-flicker & Shadow
LED Ring Light for Stereo Microscope LED Illumination HS-72 Model

| Specifications of HS-72 LED Ring Light

LED Q’ty72 LED bulbs
Mounting Diameter62mm, Outer Diameter: 98mm
Input PowerDC12V 600mA
Input VoltageUniversal 100-240V AC
Output Power7.2W
LED Color Temperature±6500K
LED Luminance>15000mcd
LED Angle18°(Consistent)
LED Lifetime100,000hrs
Working Distance95-115mm
LED ColorWhite(Optional Other Colors)

| Standard Configuration

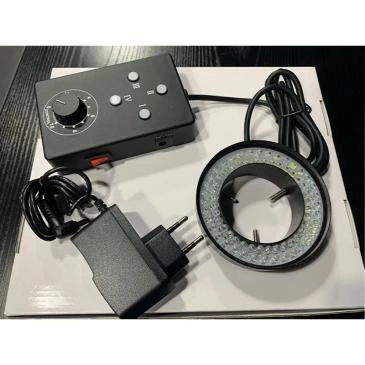

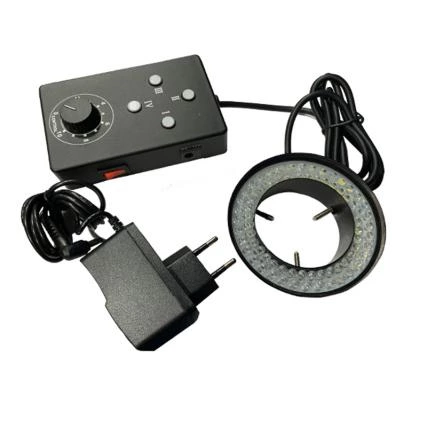

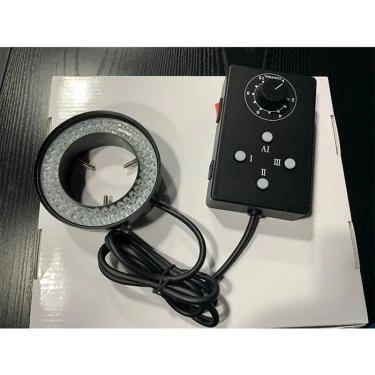

72LED Lamp, Light Control Box, DC12V Power Supply

| Applications of HS-72 LED Ring Light

Stereo microscopes and machine vision systems inspect or image as illumination. This product needs to be used with our stereo microscopes. There are four screws around the ring light source, install it on the position of the objective lens of the stereo microscope, and tighten the screws. Just adjust the brightness of the product partition through the central control switch.


A1: We support T/T payments, or Western Union. You can communicate with us about other payment methods in detail.

A2: We provide one year of free after-sales service, during this period due to the machine itself caused by the parts damaged, we can provide free replacement parts. In addition, after-sales support is provided online.

A3: CE, ISO9001, ISO14001, ISO45001, ISO13485 and UKCA.

A4: There is no discount for a small order quantity. We can apply for a special price for a large order quantity.

A5: We can provide samples, if it is express, the transportation time will be about 2-3 weeks to get the product.
