Description
The XT24 stereo microscope is a fixed zoom microscope. It is mainly used to inspect and repair circuit boards. The standard objective lens is 2X/4X, and you can also choose 1X/2X or 1X/3X. This stereo microscope is equipped with a square base and can be used with or without a light source, or with a universal stand. Currently, this model only has a binocular head and cannot be connected to a digital camera to process images.
| Main Specifications of XT24 Series Stereo Microscope
| Binocular & Trinocular Head Angle of Viewing | 45° |
| Eyepiece | WF10X20mm |
| Objective | 1X/2X, 1X/3X, 2X/4X |
| Magnification | 10X/20X, 10X/30X, 20X/40X |
| Interpupillary Distance Adjustment Range | 54-75mm |
| Working Distance | 100mm |
| Optical Data of XT24 Series Stereo Microscope
| Objective | Eyepiece | |||||
| WF10X/20mm | WF15X/15mm | WF20X/10mm | ||||
| Magnification | Field of View | Magnification | Field of View | Magnification | Field of View | |
| 1X | 10X | 20.mm | 15X | 15mm | 20X | 10mm |
| 2X | 20X | 10mm | 30X | 7.5mm | 40X | 5mm |
| 3X | 30X | 7.5mm | 45X | 5mm | 60X | 3.3mm |
| 4X | 40X | 5mm | 60X | 3.3mm | 60X | 2.5mm |
| Technical Specifications of of XT24 Series Stereo Microscope
| Item | Specifications | XT24-1 | XT24-2 |
| Eyepiece | WF10X/20mm | ● | ● |
| Binocular head | Inclined 45 degree, rotatable 360 degrees | ● | ● |
| Interpupilary distance:55-75mm | ● | ● | |
| Turret objective | 2X/4X | ● | ● |
| 1X/2X | O | O | |
| 1X/3X | O | O | |
| Working distance | 100mm | ● | ● |
| Focusing | Two focusing knobs also used for tension adjustment, slide range is 50mm | ● | ● |

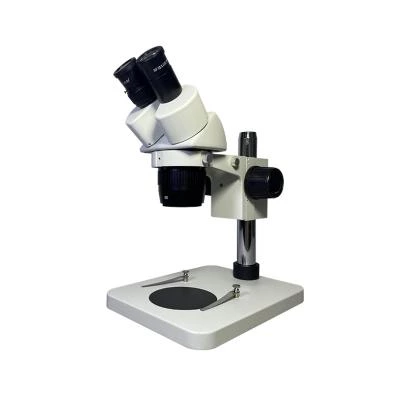

| Illumination | No illumination | ● | — |

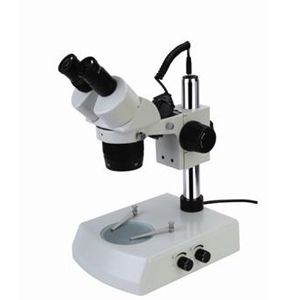

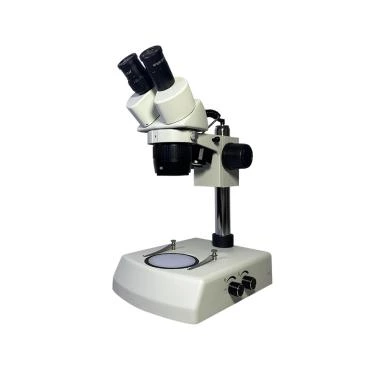

| Up-down LED lamp. | — | ● |
Note: “●” in the table is standard outfits, ”O” in the table is optional outfits
| Item | Specifications | XT24-US1 | XT24-UD1 |
| Eyepiece | WF10X/20mm | ● | ● |
| Binocular Head | Inclined 45 degree, rotatable 360 degrees | ● | ● |
| Interpupilary distance:54-75mm | ● | ● | |
| Objective | Built-in 1X/2X objective | ● | ● |
| Coarse Focusing | Two focusing knobs are also used for tension adjustment, slide range of 50mm | ● | ● |
| Universal Stand | Universal single stand on metal plate standard | ● | |

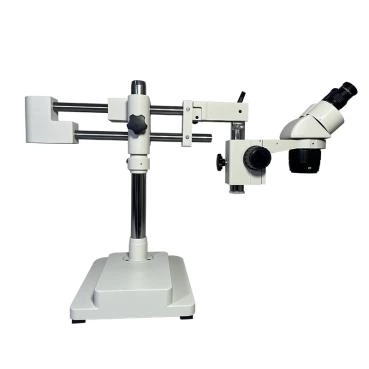

| Universal double stand on metal plate standard | ● |
| Features of XT24 Series Stereo Microscope
- High contrast, large depth of field, high resolution.
- Applied in jewelry, electronics industry, and other fields.
- Magnification 20X/40X.
| Applications of XT24 Series Stereo Microscope
As long as it is a general magnification requirement of a stereo microscope, this stereo microscope can meet it and can observe biological samples, textile fibers circuit boards, etc.
