In Surface Mount Technology (SMT) and Electronics Manufacturing Services (EMS) facilities, the optimal equipment strategy is: deploy 60 FPS @ 4K/1080P high-frame-rate digital microscope systems with cross-polarization at SMT inline inspection and First Article Inspection (FAI) stations to eliminate motion lag and reflections, boosting UPH and reducing fatigue; deploy trinocular stereo boom microscopes at dedicated manual rework stations to provide essential, irreplaceable 3D optical depth perception for manually placing fine-pitch QFNs and BGAs.
Core Characteristics & Type Comparison of PCB-Dedicated Microscopes

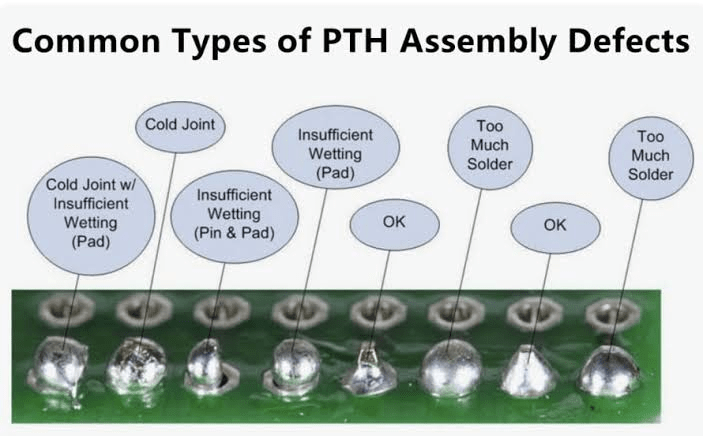

The primary goal of PCB Inspection is to ensure bare boards and PCB Assemblies (PCBAs) meet IPC-A-610 standards by identifying physical defects like cold solder joints, bridging, and tombstoning. Unlike biological microscopes used for static observation, PCB inspection and rework are high-intensity, dynamic operations. Dedicated PCB microscopes feature these core advantages:
- Dual-Path True 3D Depth of Field: Accurately judges solder heel/toe fillets and precise tool drop placement.
- Extended Working Distance (100mm–200mm): Leaves ample space for hot air wands, soldering irons, jumper wire tweezers, and test probes during live rework.
- Professional Anti-Glare Illumination (Polarized Ring Lighting): Uses physical polarization filters to eliminate 90%of blinding metallic reflections from lead-free solder, gold fingers, copper foils, and conformal coatings.
- Large Field of View & Dynamic Mobility: Supports rapid scanning across large PCBA panels without needing to move or cut the board.
Comparison of Common PCB Microscope Types
| Microscope Type | Spatial 3D Depth | Image Export | Frame Rate & Latency | Core Pros & Cons | SMT / EMS Application Scenario |
| Binocular Stereo | Pure Optical 3D | No | Zero Latency | Precise targeting, low cost Neck strain, no photo archiving | Basic manual ops & simple rework |
| Trinocular Stereo | Pure Optical 3D | Yes (C-Mount) | Zero (Eyepiece) / Camera-dependent (Display) | 3D rework screen sharing Large footprint, needs dual-focus sync | Precision SMT rework (BGA/QFN), training |
| Standard HDMI/USB Digital | None (2D) | Yes | Low (<30 FPS) / Laggy | Cheap, compact Display lag, causes dizziness, no anti-glare | Entry DIY, quick checks (Not for SMT line) |
| High-FPS 4K Industrial Digital | None (2D) | Yes (USB/MES) | 60 FPS / <10ms | Ergonomic screen, zero blur, polarized measurement No optical 3D depth | SMT line QC, First Article Inspection (FAI) |
| Smart 3D Measurement Digital | Reconstructed 3D | Yes (Auto FA Reports) | High FPS (Needs PC) | 3D depth, micron-level measurement & FA Very high cost ($15k–$50k+) | Failure Analysis (FA) labs, high-level QE re-inspection |
Key Equipment Technical Requirements for SMT & EMS Workstations
- 60 FPS / <10ms Zero-Lag Display: Eliminates motion blur and dizziness during rapid board panning.
- Heads-Up Ergonomics: 4K screen viewing reduces neck strain and operator error over 8-hour shifts.
- Polarized Ring Lighting: Removes harsh reflections to clearly show solder wetting angles and textures.
- On-Screen Measurement & MES Traceability: PC-free parameter checks with 1-click IPC-A-610 data exports.
- Heavy-Duty Boom Stand: Smooth, wide-area panning across large PCBAs without moving the board.
SMT & EMS PCB Inspection: What Microscope Is Best?
| Station Role | Recommended Brands & Models | Core Hardware Specs | Core Production Line Problems Solved |
| SMT Line QC & FAI | TAGARNO TREND CQScope Industrial 4K | 60 FPS @ 4K/1080P zero-latency Polarized Anti-Glare 180mm WD | Eliminates motion blur & dizziness; heads-up screen relieves neck strain; direct onboard MES logging. |
| High-Mag Review & FA Lab | Keyence VHX-7000 Navitar Zoom 6000 | 4K High Res 20x–500x Zoom Coaxial Lighting | Eliminates fine-pin shadows; captures micro-cracks/cold solder joints; generates FA data for customer returns. |
| SMT Rework & BGA Bench | Vision Engineering Mantis Leica S9 i | Pure Optical 3D Depth 165–200mm WD Flex-Arm Boom | Real spatial depth for precise soldering placement; ample clearance for hot air wands/irons; prevents pad damage. |
SMT Line QC & First Article Inspection (FAI): 4K/60FPS High-FPS Industrial Digital Display Systems
Recommended Products: TAGARNO TREND / TAGARNO ZAP (Danish high-end digital benchmark), CQScope Industrial 4K Digital Microscope (Cost-effective line-first choice).
Positioning: Built for high-density SMT line inspection, combining continuous zoom optics with 4K HDMI screen output for zero-lag heads-up viewing to maximize UPH.
Key Specifications:
- Working Distance: 120mm–180mm clearance to clear tall electrolytic capacitors and heat sinks.
- Magnification: 10x–150x continuous zoom, covering wide panel scans down to 0201/01005 details.
- Optical & Display Latency: 60 FPS @ 4K/1080P with <10ms delay, eliminating panning motion blur.
- Lighting System: Standard rotating polarized LED ring light filtering 90%of glare.
- Workflow: PC-free measurement software; one-click export of 4K annotated screenshots to USB/MES for IPC-A-610 traceability.
- Mounting & Ergonomics: Heavy-duty dual-arm boom stand; heads-up viewing reduces operator neck strain and oversight.
- ROI: Speeds up single-station inspection by 40%–60%, recovering investment in 1–2 months.
High-Magnification Defect Troubleshooting & Failure Analysis (FA): Single-Tube Zoom 4K C-Mount Systems
Recommended Products: Keyence VHX-7000 Series (Japanese premier FA benchmark), Navitar Zoom 6000 (High-precision modular lens), CQScope 4K C-Mount Zoom Microscope (Universal high-end QC module).
Positioning: Ideal for dedicated re-inspection stations and labs inspecting fine-pitch IC pins, BGA edge bridging, and customer returns.
Key Specifications:
- Magnification: High-res C-mount zoom combined with 4K output provides 20x–500xmagnification for micron-level defects.
- Lighting & Optics: Multi-zone independently controllable LED coaxial lighting penetrates dense IC pin shadows and blind vias.
- Workflow & Analysis: PC software supports 3D depth stacking, micron-level 2D/3D geometry measurements, and automated FA report generation.
SMT Manual Rework & BGA Touch-Up: Trinocular Stereo Zoom Microscope Systems
Recommended Products: Vision Engineering Mantis 3D (UK eyepiece-less 3D benchmark), Leica S9 i (German high-end rework trinocular system), AmScope SM-4TP (Industrial-grade universal classic).
Positioning: The standard choice for manual rework, combining real optical 3D depth perception for technicians with screen display/recording outputs for instruction.
Key Specifications:
- Working Distance: Reaches 165mm–200mm with a 0.5x Barlow lens, leaving ample room for irons, hot air wands, and tweezers.
- 3D Depth & Latency: Pure dual-path optics deliver absolute zero delay and real 3D depth, improving micro-soldering precision and cutting pad damage rates by 80%.
- Dual-Channel Collaboration: Technicians perform manual rework via eyepieces/eyepiece-less 3D while the top C-mount outputs 4K video to a monitor for training and recording.
