YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine
- Double disc design, grinding and polishing can be operated independently
- Applicable to all kinds of metallographic samples
- Equipped with a cooling device, the turntable is equipped with water pipes, which can be used to clean the grinding disc, etc.
Click the button below to contact us:
Description
There are two types of Automatic Metallographic Grinding and Polishing Machines, YMPZ-1 automatic metallographic sample grinding and polishing machine is a single-disc operation, and YMPZ-2 automatic metallographic sample grinding and polishing machine is a double-disc operation.
| What Is the YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine?

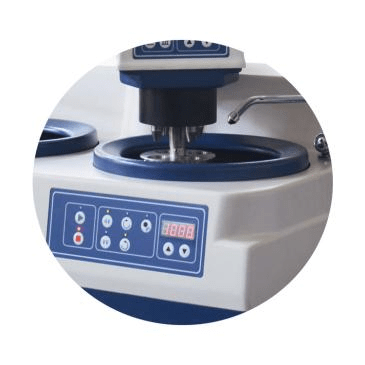

YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine is a double-disc automatic grinding equipment. Each turntable can be controlled individually, and the speed and direction of rotation of the turntable can be adjusted. Our grinder equipment is made of ABS material, which has a novel appearance and is not easy to be corroded and damaged. Equipped with a cooling device, the turntable is equipped with water pipes, which can be used to clean the grinding disc, etc.
YMPZ-2 automatic metallographic sample grinding and polishing machine is equipped with an automatic grinding head, which can be used to clamp samples for grinding and can hold four samples at the same time to set the grinding time and direction.
| Technical Parameters of YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine
| Model | YMPZ-2 |
| Disc Diameter | 230mm |
| Abrasive Paper Diameter | 230mm |
| Disc Speed | Film key operation, Nixie tube display, With automatic locking of the grinding head and washing function |
| Disc Rotational Direction | Clockwise or Counterclockwise |
| Disc Electromotor | DC brushless motor, 220V, 600W |
| Head Electromotor | Stepper motor, 200W |
| Head Speed | Stepless speed 20~120r/min |
| Timing Set | 0~99min |
| Sample Holding Qty. | 4 pcs |
| Sample HolderSpecification | Φ25mm, Φ30mm, Φ40mm (Choose one)or Customized specification |
| Pressure Method | Individual air pressure |
| Pressure Force | 0~60N |
| Control and Display | Film key operation , Nixie tube display, With automatic locking of the grinding head and washing function |
| Power Supply | 220V, 50Hz, 8A |
| Dimensions | 757×660×630mm |
| Net Weight | 78kg |
| Packing List of YMPZ-2 Automatic Metallographic Sample Grinding and Polishing Machine
| Name | Specification | Qty |
| Machine Body | 1 set | |
| Grinding Head | 1 pc | |
| Grinding and Polishing Disc | 230mm | 2 pcs |
| Magnetic Disc | 230mm | 2 pcs |
| Metal Disc | 230mm | 6 pcs |
| Abrasive Paper | 230mm | 6 pcs |
| Polishing Cloth | 230mm | 2 pcs |
| Water Inlet Pipe | 1 pc | |
| Water Outlet Pipe | Φ32mm | 2 pcs |
| Water Inlet Filter Screen | 1 pc | |
| Air Pipe | Φ6mm | 1 pc |
| Air Filter | 1 pc | |
| Inner Hexagon Spanner | 2mm, 3mm, 5mm | each 1 pc |
| Usage Instruction Manual | 1 copy |
| Why Choose Us?
- The performance of the product is above average in China, and we have in-depth cooperation with domestic and foreign laboratories, testing institutions, scientific research institutes, shipbuilding, and metallurgical industries.
- The standard shelf life of our metallographic equipment is one year. During this period, if you are hesitant about the failure of the product itself, you can find us to replace the spare parts
- The product is a neutral export, without a logo, the logo can also be customized for customers.
| Package & Delivery
The YMPZ-2 automatic metallographic sample grinding and polishing machine is packed in a wooden box, without a logo, but a mark can be attached. YMPZ-2 is packed in two boxes, one box for the grinding head and one box for the host. The packaging size of the host is 860*720*640mm, and the packaging size of the grinding head is 580*580*420mm.
If there are a large number of products, it is recommended to ship this type of product by sea. If you have requirements on time, you can also choose air freight and express delivery.
