The price has an advantage, the product quality is good

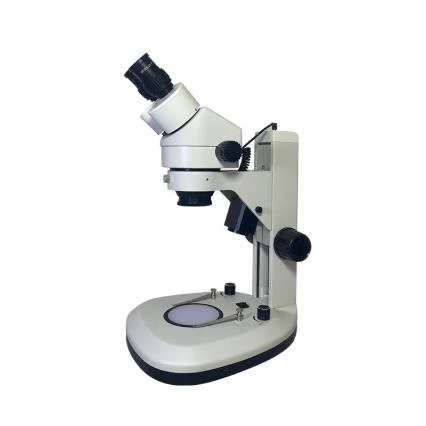

Configuration: Vertical sector base without illumination
Click the button below to contact us:
Description

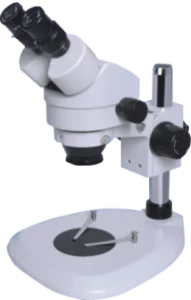

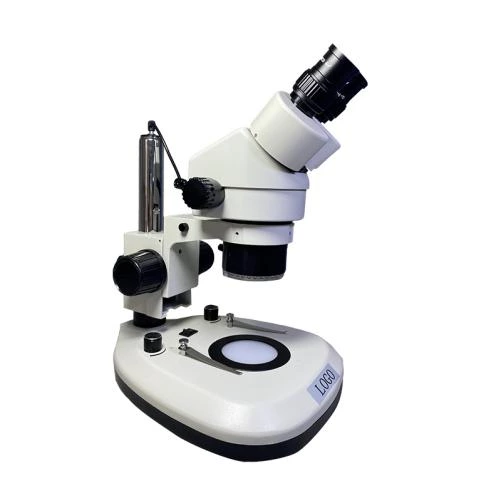

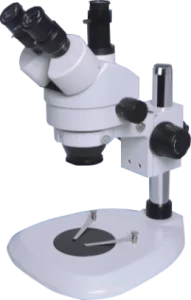

XTL7045-J series zoom stereo microscope adopts a streamlined integrated mechanical design, Easy operation, long working distance, clear resolved image, and enclosure integrated. The microscope is used extensively in world medical research and health care, biology and botany research, and agriculture, as well as in electronic component manufacturing. Specially suited for LED, PCB inspection, pressing plating, and electronic component inspection.

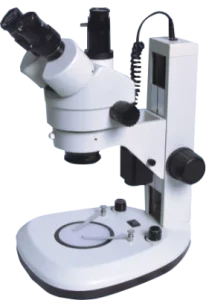

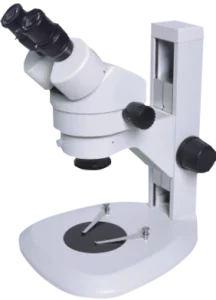

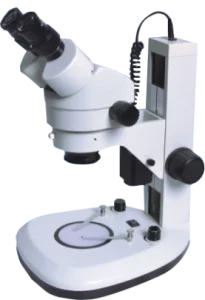

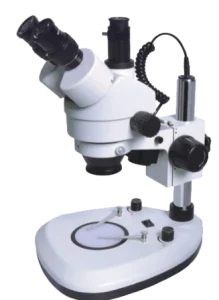

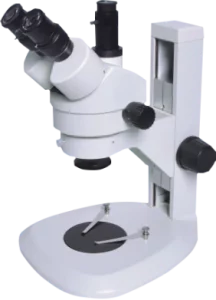

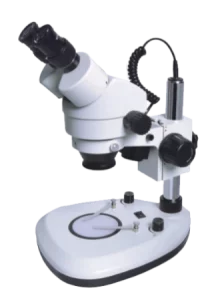

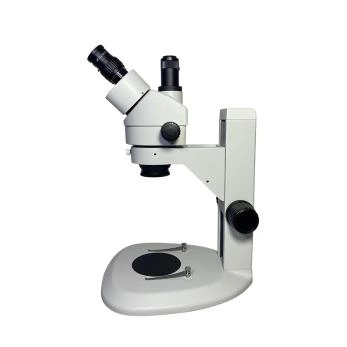

| Different Types of XTL7045-J Series Zoom Stereo Microscope
XTL7045-J1-B
XTL7045-J2-B
XTL7045-J3-B
XTL7045-J4-B
XTL7045-J1-T
XTL7045-J2-T
XTL7045-J3-T
XTL7045-J4-T
| Main Specifications of XTL7045-J Series Zoom Stereo Microscope
Binocular & Trinocular Head Angle of Viewing
45°
Zoom Ratio
1:6.4
Eyepiece
WF10X20mm
Objective
0.7X-4.5X
Magnification
7X-45X
Interpupillary Distance Adjustment Range
55-75mm
Working Distance
100mm

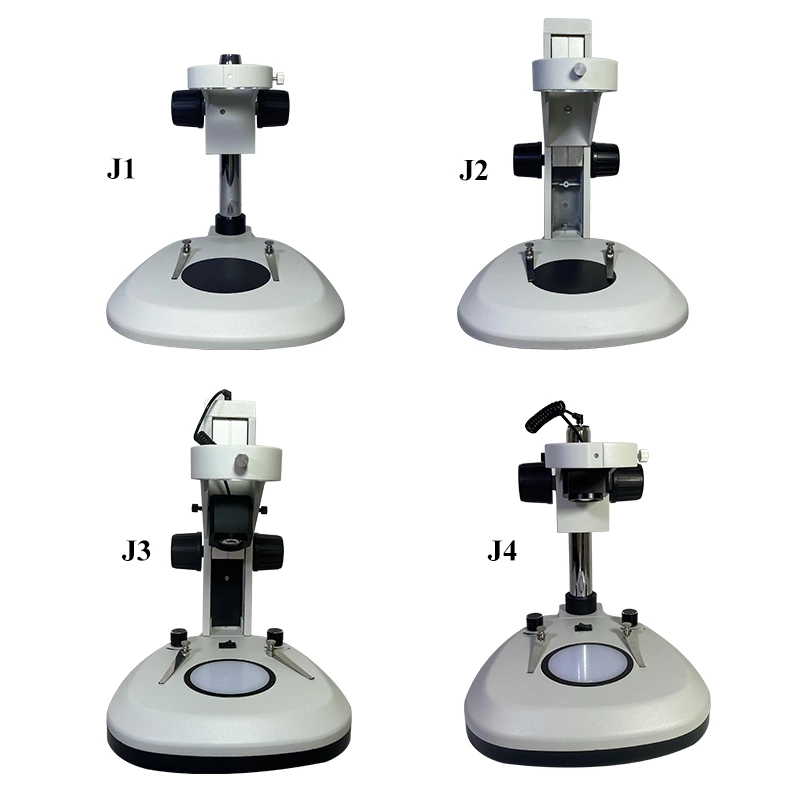

J1 Pillar Sector Base Size
285 x238mm
J2 Vertical Sector Base Size
285 x238mm
J3 Vertical LED Base Size
285 x238mm
J4/J5 Pillar LED Base Size
285 x238mm
| Optical Data of XTL7045-J Series Zoom Stereo Microscope
Eyepiece
Standard (1X objective)
Auxiliary 0.5X Objective
Auxiliary 1.5X Objective
Auxiliary 2.0X Objective
W.D.=100mm
W.D.=165mm
W.D.=45mm
W.D.=30mm
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
Magnification
Field of View
WF10X/20mm
7X
28.6mm
3.5X
57.1mm
10.5X
19mm
14X
14.3mm
45X
4.4mm
22.5X
8.9mm
67.5X
3mm
90X
2.2mm
WF15X/15mm
10.5X
21.1mm
5.25X
42.8mm
15.75X
14.3mm
21X
10.7mm
67.5X
3.3mm
33.75X
6.7mm
101.25X
2.2mm
135X
1.7mm
WF20X/10mm
14.0X
14.3mm
7X
28.6mm
21X
9.5mm
28X
7.1mm
90.0X
2.2mm
45X
4.4mm
135X
1.5mm
180X
1.1mm
| Technical Specifications of XTL7045-J Series Zoom Stereo Microscope
Items
XTL7045-J1
XTL7045-J2
XTL7045-J3
XTL7045-J4
XTL7045-J5
Main body(Built-in 1X objective)
●
●
●
●
●
Head
Binocular head
●
●
●
●
●
Trinocular headlight distribution: 0:100
O
O
O
O
O
Eyepiece
WF10X/20mm
●
●
●
●
●
WF15X/15mm
O
O
O
O
O
WF20X/10mm
O
O
O
O
O
Additional Objective
0.5X
O
O
O
O
O
1.5X
O
O
O
O
O
2X
O
O
O
O
O
Focusing unit
Coarse focus knobs
●
●
●
●
●
Illumination
No light
●
●
Up-down LED light
●
●
Up built-in LED ring light(30pcs bulbs),Down 3WLED light
●
Note: “●” is standard outfits, “O” is optional outfits
| Advantages of Stereo Microscope
3D view: Stereo microscopes provide a three-dimensional view of the specimen. This is because they use two eyepieces to present two slightly different images of the specimen to the user’s eyes. The brain then combines these two images to create a single, three-dimensional image.
Large working distance: Stereo microscopes typically have a large working distance, which is the distance between the objective lens and the specimen. This allows users to manipulate the specimen without having to worry about hitting it with the objective lens.
Wide field of view: Stereo microscopes typically have a wide field of view, which allows users to see a large area of the specimen at one time. This is useful for examining large or complex specimens.
Ease of use: Stereo microscopes are relatively easy to use, making them ideal for students and researchers alike.
| Packing Size
XTL7045-J series microscope This series of microscopes is available in individual packages and two-box packages. The packaging size of this series of microscopes is basically the same, and you can consult the shipping price based on this packaging.
Model
Qty
Box
Length
Width
Height
Gross weight
Net weight
XTL7045-J1
1
1
40.5
28
43
5.5
4.5
2
1
57.5
41
44
11
9
XTL7045-J2
1
1
40.5
28
43
4.5
3.5
2
1
57.5
41
44
9
7
XTL7045-J3
1
1
40.5
28
43
6
5
2
1
57.5
41
44
12
10
XTL7045-J4
1
1
40.5
28
43
6
5
2
1
57.5
41
44
12
10
| FAQ
A1: We meet international production standards, and have strict quality control and product qualification certificates, such as CE and ISO.
A2: All products are produced by our own factories and cooperative factories.
A3: We support express, sea, and air transportation. It can also be transported according to customer needs.
