Description

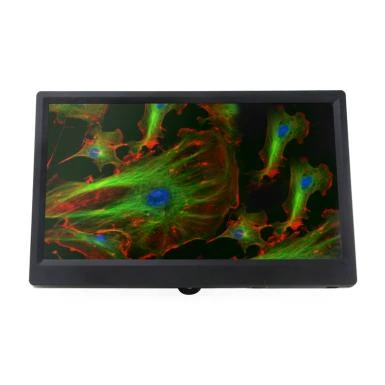

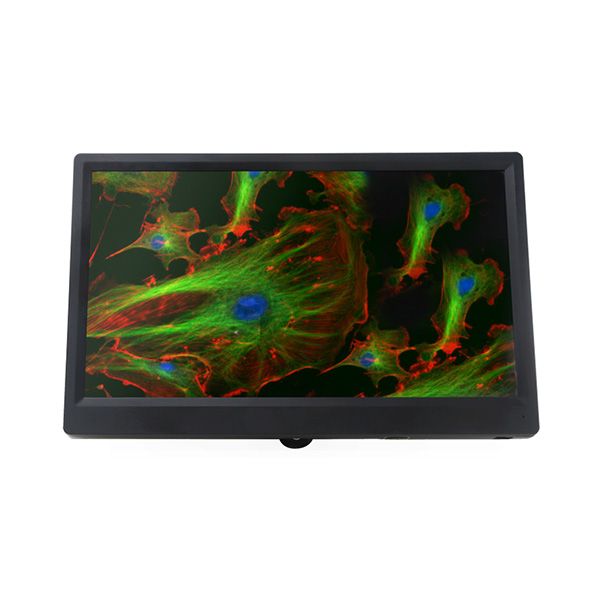

TPHD1080PD/TP2HD1080PD HDMI displayer uses an IPS LCD panel (super TFT) to ensure a wide viewing angle and high contrast. It is a companion product for the XCAM series HDMI cameras and can be used for high-definition displays. Used with XCAM HDMI cameras, it can make imaging and display solutions simple, flexible, and intuitive.
The excellent performance of this product helps XCAM HDMI
microscope cameras achieve fast frame rates and excellent colors. The HDMI camera with touch function is connected to the TP2HD1080PD touchscreen display, which can easily realize the touch operation of the camera function.
| Features of TPHD1080 HDMI Monitor
- TPHD1080PD(General model)/TP2HD1080PD(Touchscreen model)
- True 1080P HDMI displayer
- 13.3-inch active area
- IPS LCD panel, 178-degree wide viewing angle
- HDR dynamic image enhancement
- 72% SRGB primary gamut
- 400cd/m2 display brightness, high contrast ratio up to 1000:1
- 4mm narrow frame design on three sides, with 90% of the screen area, great visual experience
- No delay is felt with a 3ms response, and dynamic definition is optimized to keep the picture stable and clear without a residual shadow
- Standard HDMI interface
- Connect the computer to realize screen projection, splitting, and expansion
- Integrated invisible folding support, easy viewing angle adjustment
- Easy to connect with HDMI camera
| 1.1.1 TPHD1080PD Datasheet
| Order Code | Active Area(Inch) | Video Fomat | Resolution | Contrast | Color Gamut | View Angle | Touch Function |
| TPHD1080PD | 13.3 | HDMI | 1080P | 1000:1 | 72% | IPS Full View(178°) | NA |
TPHD1080PD Datasheet
| Basic Performance | |
| TPHD1080PD/TP2HD1080PD | Common/touch, 2 means square |
| LCD Panel | IPS LCD Screen(Super TFT) |
| Input Video Format | HDMI |
| Native Resolution | 1920 x 1080 |
| Display Type | 16:9 Ratio 13.3 Inch Active Matrix Super TFT LCD |
| Typical Contrast Ratio | 1000:1 |
| Colors | 16.7 Million |
| Viewing Angle(L/R/U/D) | IPS Full View(178°) |
| Active Display Area | 295mm(W) × 165mm(H) |
| Pixel Pitch | 0.154(W) X 0.154(H) mm |
| Refresh Rate | 60Hz |
| Brightness | 400cd/m2 |
| Backlight | LED Backlight， 50000 hours |
| Outline Parameter | |
| Color | Black |

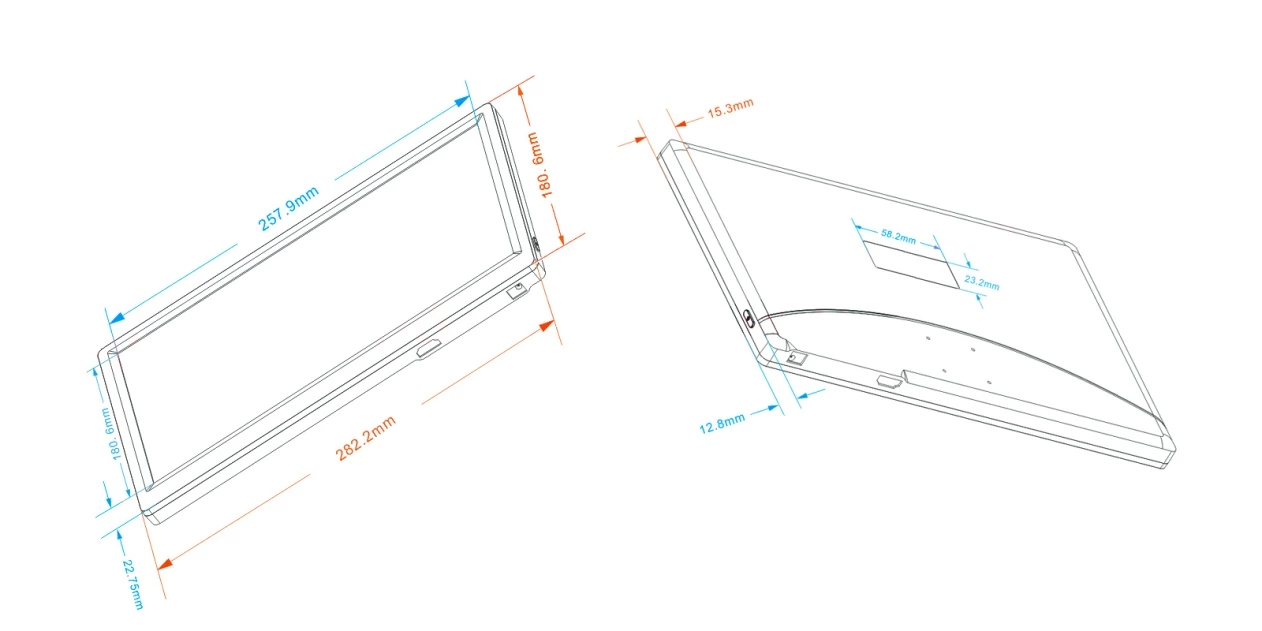

| Dimension | 306(L)*183(H)*8(T) mm |
| Weight | 450g |
| Operating Environment | |
| Operating Temperature | -15 Degree~55 Degree |
| Humidity Non Condensing | Operating:10%-90%, Storage: 5%-90% |
| Synchronization Range | 30-80 KHz Horizontal, 55-75 Hz Vertical |
| Power Supply | AC110V-220V /DC5~12V(1A ) (Type C) |
| Power Consumption | Max 12W |

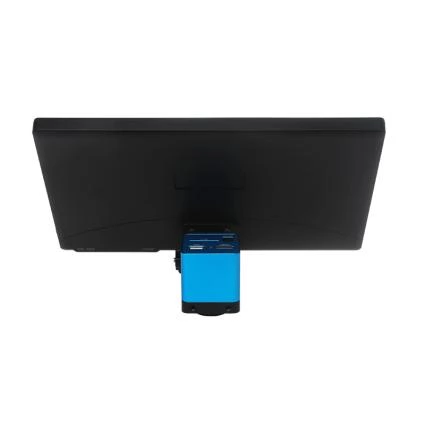

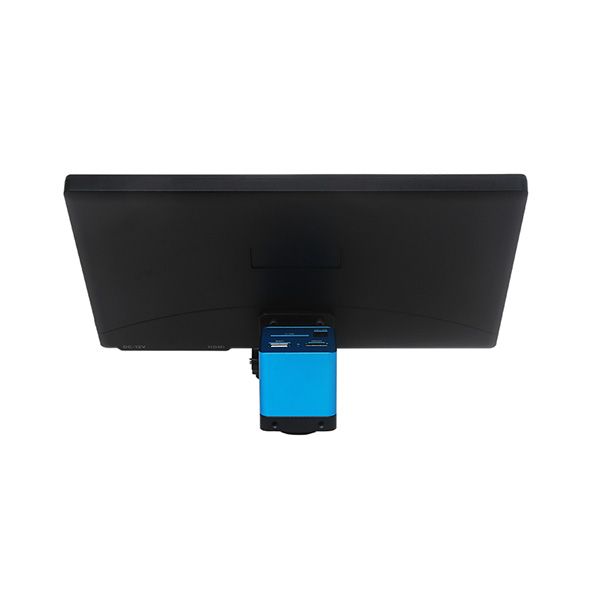

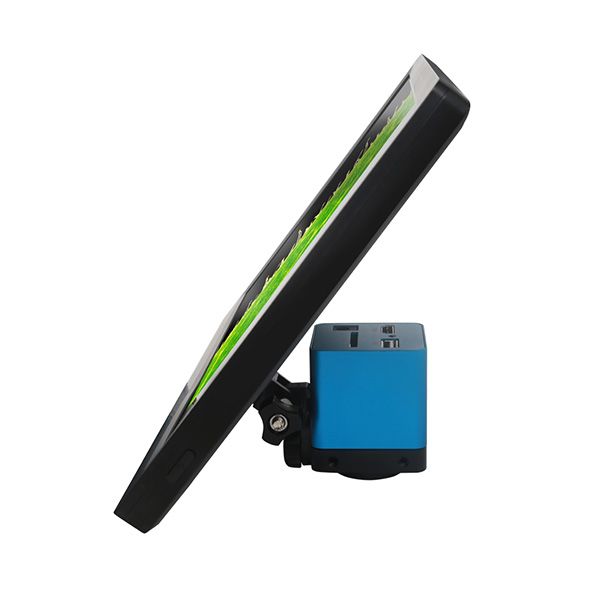

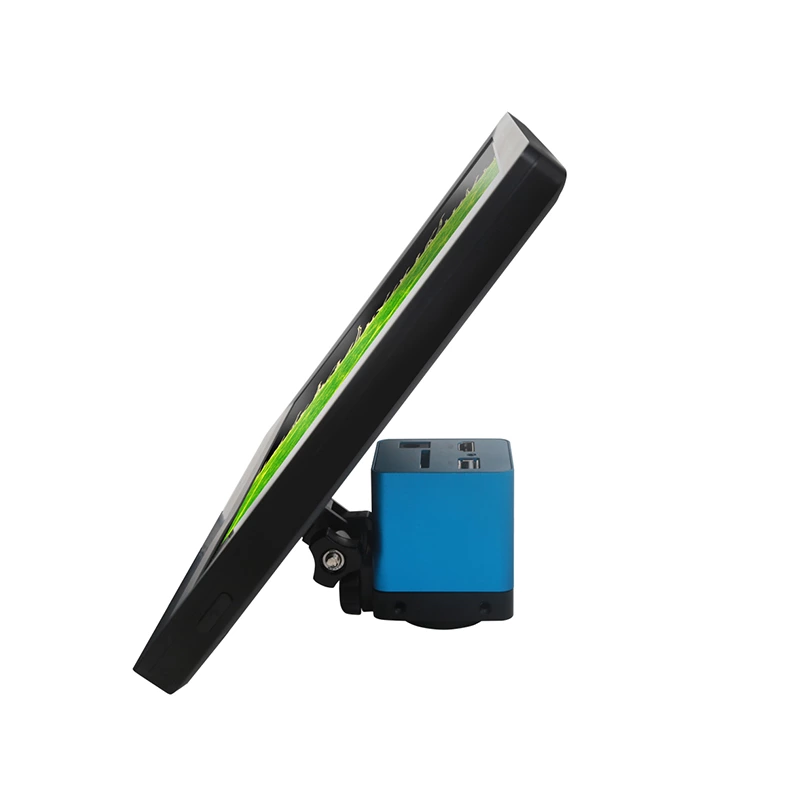

| Display of 1.1.1 TPHD1080PDand XCAM Series HDMI Camera
| Delivery
Our delivery time is about seven days, and if more products are needed, the time will be correspondingly extended. Once the product is ready, it can be transported by sea, air, or express delivery. International transportation methods are generally acceptable. We can be responsible for transportation on our end, or customers can choose their own freight forwarder for transportation.
