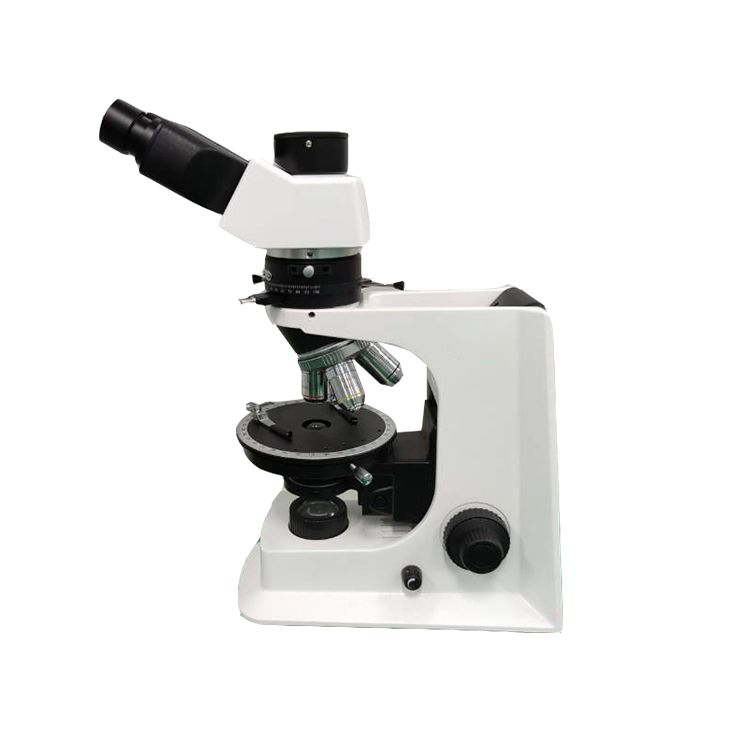

SMART-POL Polarizing Microscope

SMART-POL polarizing microscope is composed of adding polarizing intermediates to our SMART model. The polarization analysis of this polarizing microscope is 0~90°. The matching objective lens is a stress-free Plan lens. The polarizing microscope is used to study so-called transparent and opaque anisotropic materials. It is a laboratory research equipment and is widely used in minerals, chemistry, and other fields.

In addition to the standard parts, this polarizing product can also add a moving ruler. We are a microscope factory. Microscopes can be configured according to different needs, and logos can also be customized. Microscopes are divided into binocular and trinocular. Please confirm the type of eyepiece you need before placing an order.

| Features of SMART-POL Polarizing Microscope

| SMART-POL Polarizing Microscope Outfits

ltems	Specification	SMART-POL	SMART-POL-TR
Eyepiece	WF    10×-20mm	●	●
	WF 10×-20mm (adjustable, reticule 0.1mm)	●	●
Non-stress Infinity Plan Objective	4×	●	●
	10×	●	●
	20×(S)	●	●
	40×(S)	●	●
	60×(S)	○	○
	100×(S,Oil)	○	○
Swiveling Seidentopf Binocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance:48-75mm.	●	○
Swiveling Seidentopf Trinocular Head	Inclined 30°,Rotatable 360°, Interpupilary Distance:48-75mm. Light Distribution 20:80	○	●
Nosepiece	Quadplex,Center adjustable	●	●
Analyzer Unit	0-90°,It can be moved out of the optical path for single polarizing observe.	●	●
Bertrand Lens	It can be moved out of the optical path.	●	●
λ Slip	First Class Red	●	●
1/4λSlip		●	●
Quartz Wedge	(I-IV  Class)	●	●
Revolving Round Stage	Rotatable 360°,Division 1°,Vernier division 6′,can be locked. Diameter φ142mm	●	●
Polarizing Attached Mechanical Stage		○	○
Condenser	Abbe N.A.1.25, Non-stress	●	●
Polarizing Unit	Under the Condenser	●	●
lllumination	5W-LED Lamp DC input	○	○
	12V/30W Halogen Lamp	●	●
FilterΦ45	Blue/Amber /Green /Neutral	○	○
C-mount	1×10.75×10.5×/0.35×(Focus adjustable)	○	○

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 550mm×380mm×285mm  Gross Weight:8.6 kgs  Net Weight:7.5 kgs

| Smart-POL Polarizing Microscope Size（mm）:

| Advantages of Polarizing Microscopes

• Increased contrast: Polarizing microscopes can be used to increase the contrast between different parts of a specimen. This can make it easier to see features that would be difficult or impossible to see with other types of microscopes.
• Reduced glare: Polarizing microscopes can be used to reduce glare from reflective surfaces. This can make it easier to see features that are obscured by glare with other types of microscopes.
• Ability to identify anisotropic materials: Polarizing microscopes can be used to identify anisotropic materials. Anisotropic materials are materials that have different optical properties in different directions. This can be useful for identifying minerals, crystals, and other types of materials.
