SMART-FL Fluorescence Microscope

  • Infinity optical, binocular, and trinocular model
  • 5W LED or 100W mercury lamp can be chosen
  • Excellent OTICS infinity optical system, outstanding resolution, and definition
  • Original integrated stand for excellent stability

Click the button below to contact us:


SMART-FL fluorescence microscope is upgraded from the model of the SMART infinity optical system. This fluorescence microscope can be configured with two sets of fluorescence or four sets of fluorescence. In addition to the standard B/G/Uv/V color filters, other color filters can also be selected. This fluorescence microscope is mainly used to observe some substances with fluorescent properties, etc., and is used in biological laboratories, school teaching, hospital research, etc.

SMART-FL Fluorescence Microscope 5

| Features of SMART-FL Fluorescence Microscope

  • Excellent OTICS infinity optical system with outstanding resolution and definition.
  • Original integrated stand for excellent stability.
  • A unique aspheric illumination system provides bright and comfortable lighting.
  • Various colorful matching looks can provide a lively environment and a happy mood.
  • With Various accessories for upgrading.
  • Back handle and observing hole convenient for carry and operation.
  • With an alternative color for the main body.
Reckless (Integrated) stage

| Different Types of SMART-FL Fluorescence Microscope

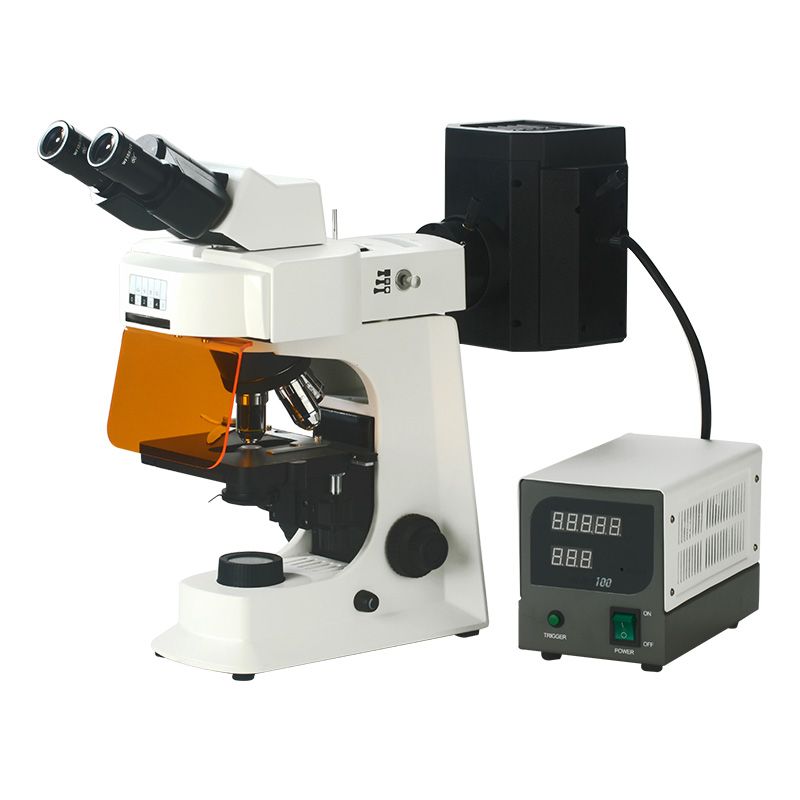

SMART-FL Fluorescence Microscope
SMART-FL Fluorescence Microscope

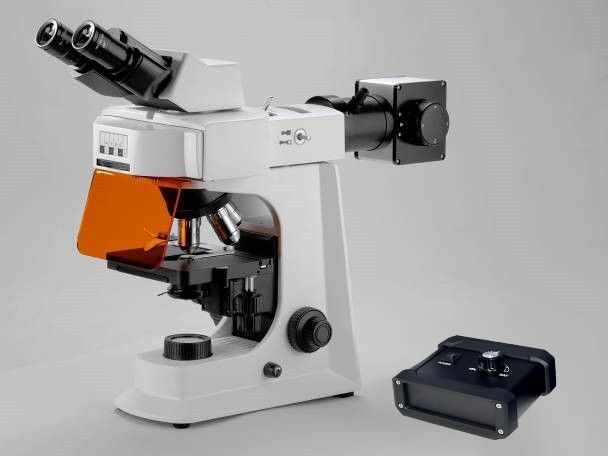

SMART-FL LED Fluorescence Microscope
SMART-FL LED Fluorescence Microscope (B/G/ one or two groups)
SMART-FL LED Fluorescence Microscope
(B/G/ one or two groups)

| Components of SMART-FL Fluorescence Microscope

Polarizer, analyzer for the simple polarizing unit
  • Simple polarizing unit
    Polarizer, analyzer for simple polarizing unit
Dry Dark Field Condenser
  • Dry Dark Field Condenser
  • Mirror
Phase contrast unit, Independent phase contrast unit
  • Phase contrast unit, Independent phase contrast unit (apply to infinity optical system)

| SMART-FL Fluorescence Microscope Size(mm)

SMART-FL Fluorescence Microscope Size(mm)

| SMART Series Fluorescence Microscope Outfits

EyepieceWF 10X- 20mm●●●●
Infinity E-PlanObjectives4X
40X (S)
100X (Oil) (S)
Infinity PlanObjectives4X
40X (S)
100X (Oil) (S)
Plan 20X
Plan 60X (S)
Butterfly SeidentopfBinocular HeadInclined 30°,Rotatable 360°, Interpupillary Distance 48-75mm
Butterfly SeidentopfTrinocular HeadInclined 30°, Rotatable 360°, Interpupillary Distance 48-75mm, Light Distribution 20:80
3MP/5MP Digital Head1/2’’CMOS color sequential scanning. USB2.0Light Distribution: 20:80
Mechanical StageStage Size: 145 mm×140mmTravel: 76mmX52mm, Scale: 0.1mmCoaxial Coarse and Fine Focusing KnobsTravel Range: 26mm, Scale: 2umTwo Slide Holder
Epi fluorescence unit (six-hole disc media which can be fixed with Uv /V/B/G and another filter) ,100W mercury lamp.
CondenserAbbe N.A. 1.25(Iris Diaphragm)
Illumination3W-LED Illumination Systems(DC input)
12V/20W Halogen Lamp
12V/30W Halogen Lamp
Field Diaphragm
Dark Field CondenserDry, apply to 4X – 40X objective
Polarizing AttachmentAnalyzer/Polarizer
Independent phase contrast unit10X /20X /40X /100X
FluorescenceAttachmentEpi fluorescence unit (six-hole disc media which can be fixed Uv /V/B/G and another filter), 5W-LED fluorescence lamp.
Chinese Blue fluorescence filter
Chinese Green fluorescence filter
Chinese Violet fluorescence filter
Chinese Ultraviolet fluorescence filter
Epi fluorescence unit (six-hole disc media which can be fixed Uv /V/B/G and another filters), 5W-LED fluorescence lamp.
FilterBlue /Green /Yellow
C-Mount1X/ 0.5X/0.75X (Focus adjustable)

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

| Epi Fluorescence Device

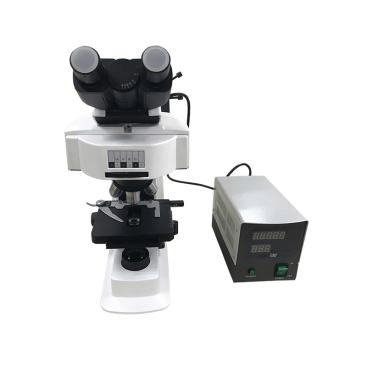

100W mercury fluorescence unit
100W mercury fluorescence unit
5W LED fluorescence unit
5W LED fluorescence unit

| China Fluorescence Flters Parameter List

China Fluorescence Flters Parameter List
 ItemExciter (nm)Dichroic (nm)Emitter (nm)
Ultraviolet excitationUV330-380400435
Violet excitationV380-420430460
Blue excitationB420-490505520
Green excitationG500-550575590
China Fluorescence Flters Parameter List
China Fluorescence Flters Parameter List
China Fluorescence Flters Parameter List
China Fluorescence Flters Parameter List
