Description
I. Introduction to Knee Joint Simulation Model Pro
Knee Joint Simulation Model Pro is a complete training model for knee arthroscopy surgery. It helps doctors quickly familiarize themselves with the procedures and instruments used in minimally invasive and open knee surgeries, obtaining realistic visual and tactile sensations during surgery, allowing doctors to learn better and faster.
II. Surgical Training Procedures

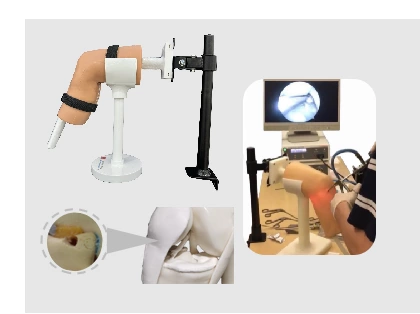

1. Knee Arthroscopy
(1) Knee Arthroscopy Exploration
(2) Knee Cruciate Ligament and Left/Right Ligament Reconstruction
(3) Knee Arthroscopy-Assisted Meniscus Suturing, Resection, Root Repair, and Remodeling
(4) Knee Arthroscopy Joint Debridement
(5) Arthroscopy-Assisted Adhesion Release
2. Knee Replacement Surgery
3. Knee Joint Anatomy Training

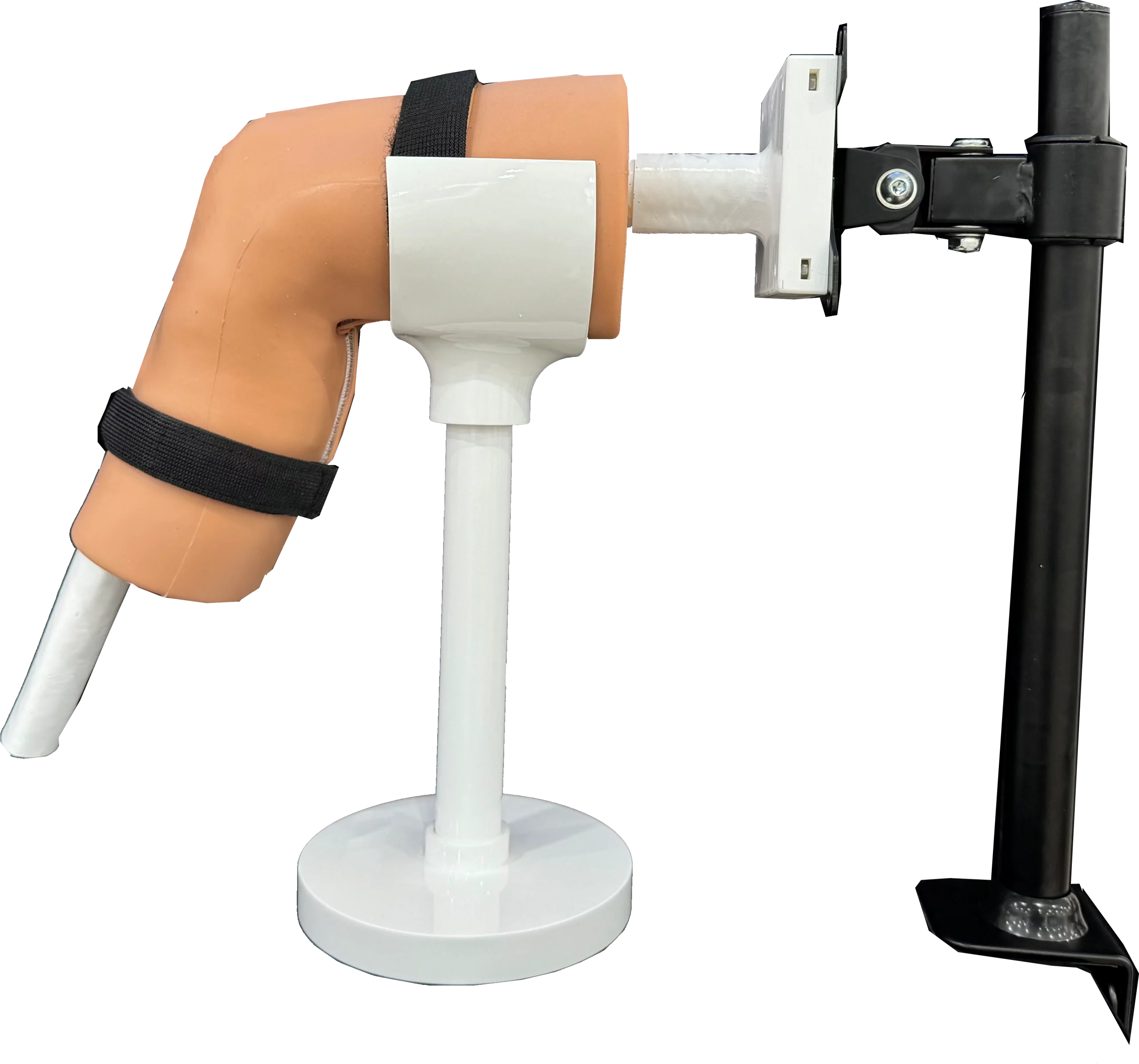

III. Knee Joint Simulation Model Pro
1. Specifications: 35.5*12*31.5 CM.
2. Not limited by location; can be placed directly on a table. 3.1:1 scale realistic human anatomy, adult physique, based on real human imaging data, featuring complete knee joint anatomy: including the tibia, femur, fibula, patella, anterior and posterior cruciate ligaments, medial and lateral collateral ligaments, meniscus, etc. Surface localization (using Kirschner wires to mark the needle insertion route) is similar to the clinical experience.
4. Skin thickness approximately 2mm, Shore A hardness A10±2, touch sensation close to normal human skin, realistic surgical feel, soft yet elastic and with tension, allowing for skin disinfection, surface marking, puncture, cutting, suturing, establishing working channels, and placement of arthroscopy.
5. Skin platinum silicone material formula: highly stable and safe with non-toxic properties. RoHS official non-toxic testing certificate available.
6. Muscles utilize a lightweight design and biomimetic memory material, allowing for rapid rebound, enabling puncture, cutting, and working channel establishment.
7. The skeleton is made of a unique biomimetic bone density material, similar to human bone density. It contains cortical and cancellous bone structures with different densities, allowing for surgical procedures such as grinding, drilling, osteotomy, screw placement, plate placement, and fixation. Drilling provides a realistic sense of hollowness, and bone powder is visible. The bone is not prone to cracking, and the material does not easily adhere to the cutting tool. It features a 1:1 scale replica of human anatomical structure with realistic bony landmarks, enabling clinical-grade surface localization.
8. The model can be clearly visualized under C-arm X-ray/CT, allowing for the recognition and identification of anatomical images and adjacent relationships of related organs under real CT/X-ray images. It displays the position of muscles, bones, and instruments, enabling clinical surgery under real CT/X-ray images. The model’s cortical and cancellous bone are distinguishable under CT, with a significant difference in CT values.
9. The model includes movable joints and extendable muscles, simulating knee joint movement.
10. The skin, muscles, and meniscus at the puncture site are consumables, reusable, and easily replaceable. 11. Includes a leg rest and a fixing bracket to ensure the model is stable and easy to handle.
IV. Basic Configuration Requirements
1. Knee joint segment *1
2. Skin *1
3. Muscle *1
4. Fixation strap *1
5. Matching leg rest *1
6. Fixation bracket *1
