| Features of QG-5 metallographic sample cutting machine

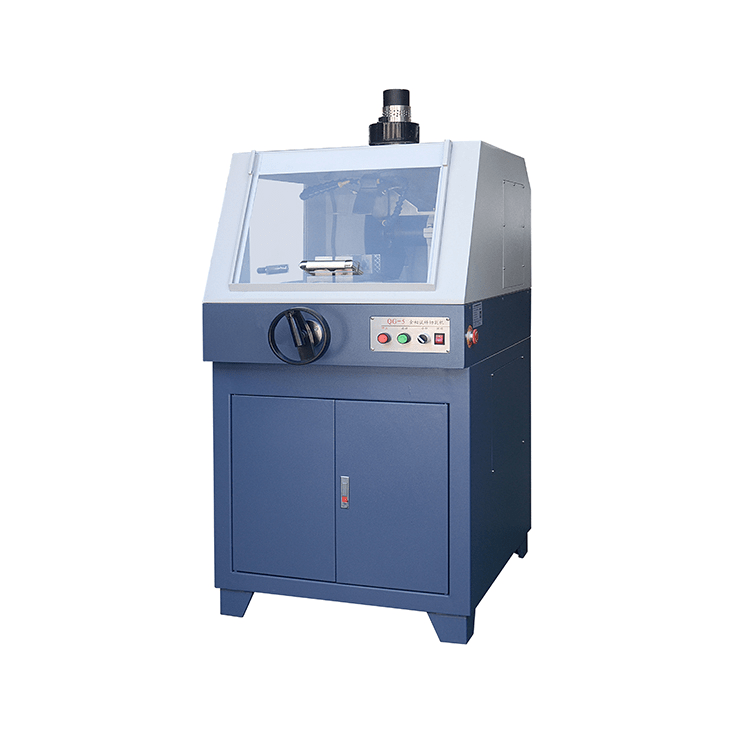

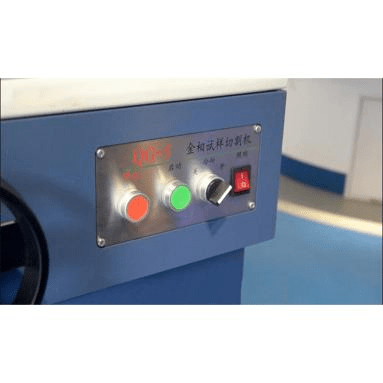

The QG-5 metallographic sample cutting machine is a vertical model suitable for various metallographic materials.
- The sample is cut by pushing the platform longitudinally, with a large cutting range and strong cutting capacity;
- The double-sided clamp structure firmly fixes the sample; the main parts such as the clamp jaws and the work surface are made of stainless steel and have a long service life;

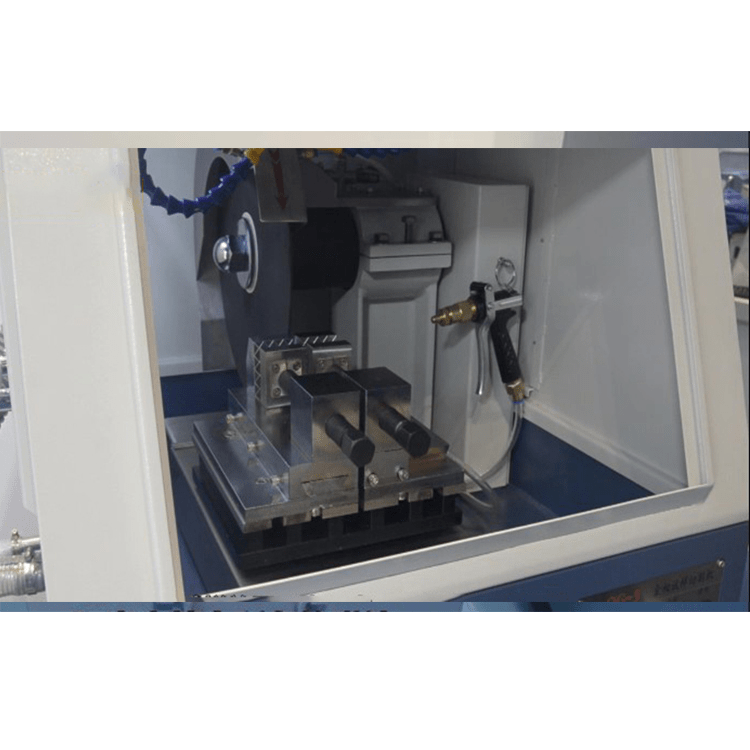

- The built-in flushing water gun is extremely convenient for maintenance;
- The cutting room adopts a double-sided transparent plexiglass window and a built-in LED lighting, and is equipped with a powerful exhaust device to make observation clearer;
- The cabinet structure is convenient for storing various cutting consumables;

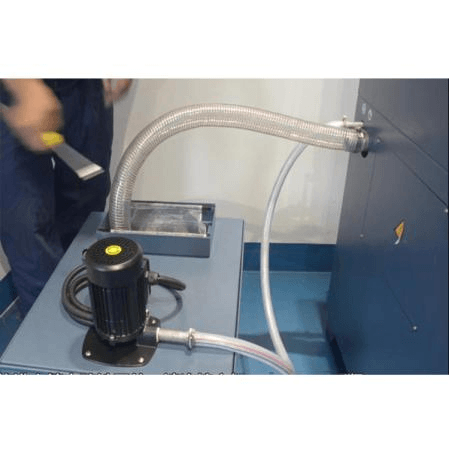

- It is equipped with a circulating cooling system, and the surface of the sample after cutting is bright, flat, and burn-free.
An extra-large visual observation window is set up to facilitate the cutting of the product during operation. This model is suitable for cutting bars within 100mm in diameter.
| Technical Parameters of QG-5 metallographic sample cutting machine
| Model | QG-5 |
| Cutting Method | Manual, Table feeding along Y axis |
| Cut-off Wheel | Φ380×2.8×Φ32mm |
| Max. Cutting Capacity | 100×120mm |
| Y Axis Travel | 265mm |
| Spindle Speed | 2800r/min |
| Electromotor Power | 4kW |
| Cutting Table | 250×240mm, T-slot 12mm |
| Clamping Tool | Threaded clamp, Jaw height 60mm, Opening 120mm |
| Power Supply | 380V, 50Hz，10A, Three-phase five-wire |

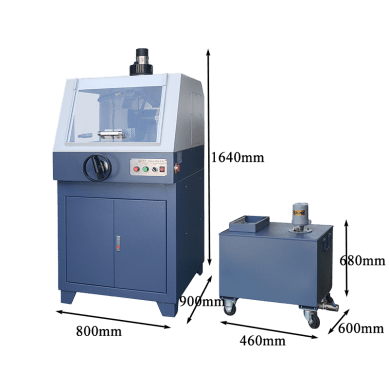

| Dimensions | 800×900×1640mm |
| Net Weight | 340kg |
| Water Tank Capacity | 100L |
| Pump Flow | 25L/min |
| Water Tank Dimensions | 460×600×680mm |
| Water Tank Weight | 36kg |
| Packing List of QG-5 metallographic sample cutting machine
| Name | Specification | Qty |
| Machine Body | 1 set | |
| Water Tank | 1 set | |
| Cut-off Wheel | Φ380×2.8×Φ32mm,Resin cut-off wheel | 2 pcs |
| Cutting Fluid | 3kg | 1 bottle |
| Spanner | 36mm, 46mm | each 1 pc |
| Inner Hexagon Spanner | 5mm, 6mm | each 1 pc |
| Socket Spanner | 24mm | 1 pc |
| Water Inlet Pipe | Φ20mm | 1 pc |
| Water Outlet Pipe | Φ48mm | 1 pc |
| Fan Pipe | 1 pc | |
| Fan | 1 pc | |
| Usage Instruction Manual | 1 copy |
