MIT300/500 Metallurgical Microscope

MIT300/500 metallurgical microscope is a professional metallographic laboratory equipment. The special semi-apochromatic objective lens used in our metallurgical microscope has a better observation effect. For metallographic dark-field microscopes, special dark-field objectives are used, which can be used for both dark-field and bright-field observations. MIT300 is a reflection light source, and MIT500 is a reflecting and transmission light source.

| Features of MIT300/500 Series Metallurgical Microscope

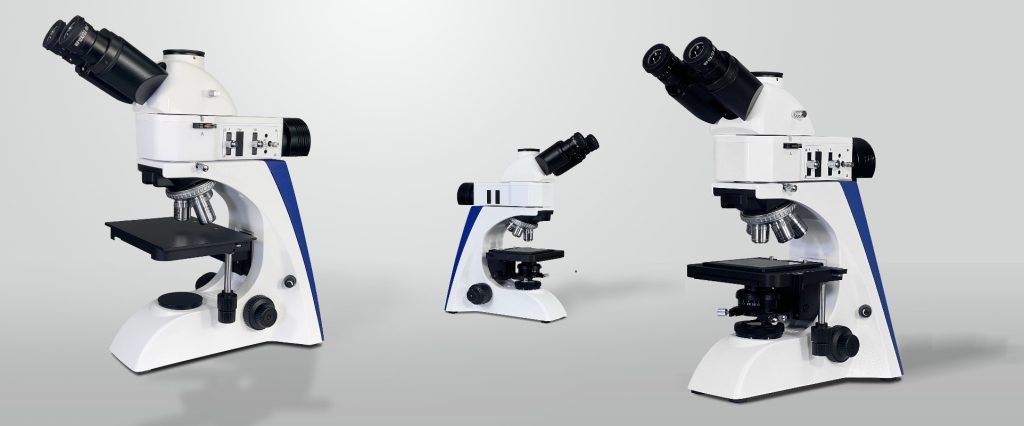

| Display of MIT300/500 Series Metallurgical Microscope

| Components of MIT300/500 Series Metallurgical Microscope

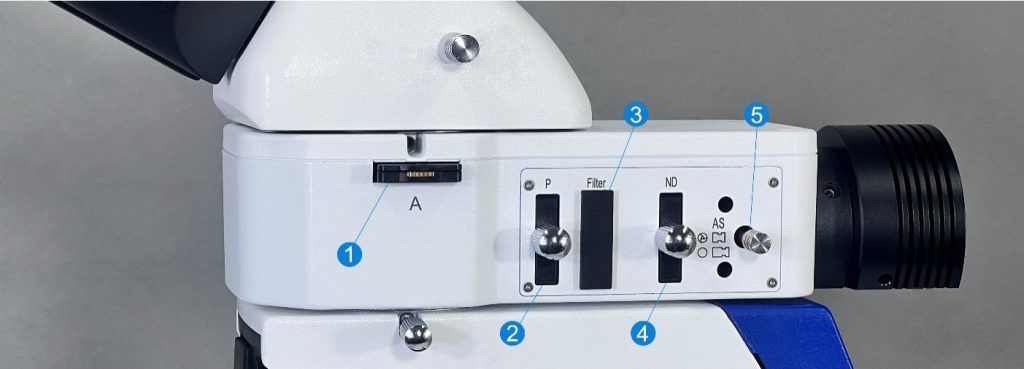

• 1. Polarizer   2.Filter switch handle   3. Field diaphragm   4. Aperture diaphragm
• A. Analyzer   B. Ground glass slider

| Objective specification: ( “●” Is Standard outfits, “○” Is Optional Accessories.)

	Objective	N.A.	Working  Distance(mm)	MIT300/MIT500	MIT300D/MIT500D
Metallurgical LWD InfinityPlan Objectives	LMPlan FL 5× (Semi Apochromatic Objective)	0.15	21.00	●
	LMPlan FL 10×(Semi Apochromatic Objective)	0.30	20.00	●
	LMPlan FL 20×(Semi Apochromatic Objective)	0.40	15.00	●
	LMPlan FL 50×(Semi Apochromatic Objective)	0.75	4.25	●
	LPL 80×	0.80	0.85	○
	LMPlan 100×（Dry）(Semi Apochromatic Objective)	0.85	3.00	○

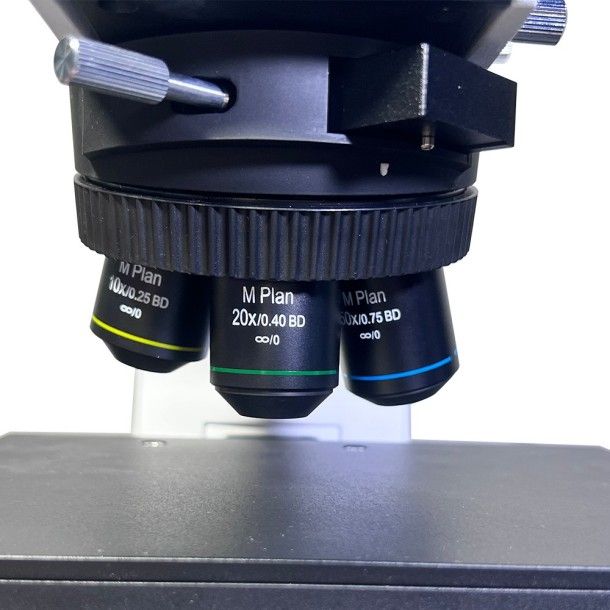

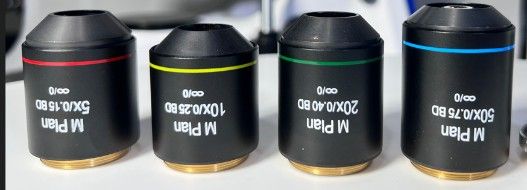

Metallurgical LWD InfinityPlan Objectives for Bright/Dark Field	M PLAN 5× BD	0.15	7.30		●
	M PLAN 10× BD	0.25	11.50		●
	M PLAN 20× BD	0.40	5.60		●
	M PLAN 50× BD	0.75	1.60		●

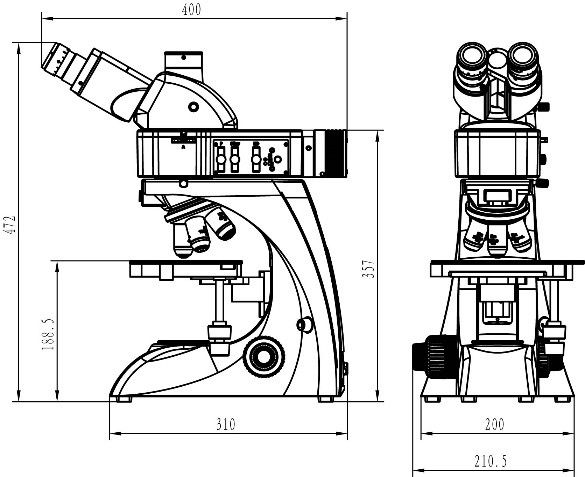

| MIT300 Metallurgical Microscope Size(mm)

| MIT500 Metallurgical Microscope Size(mm)

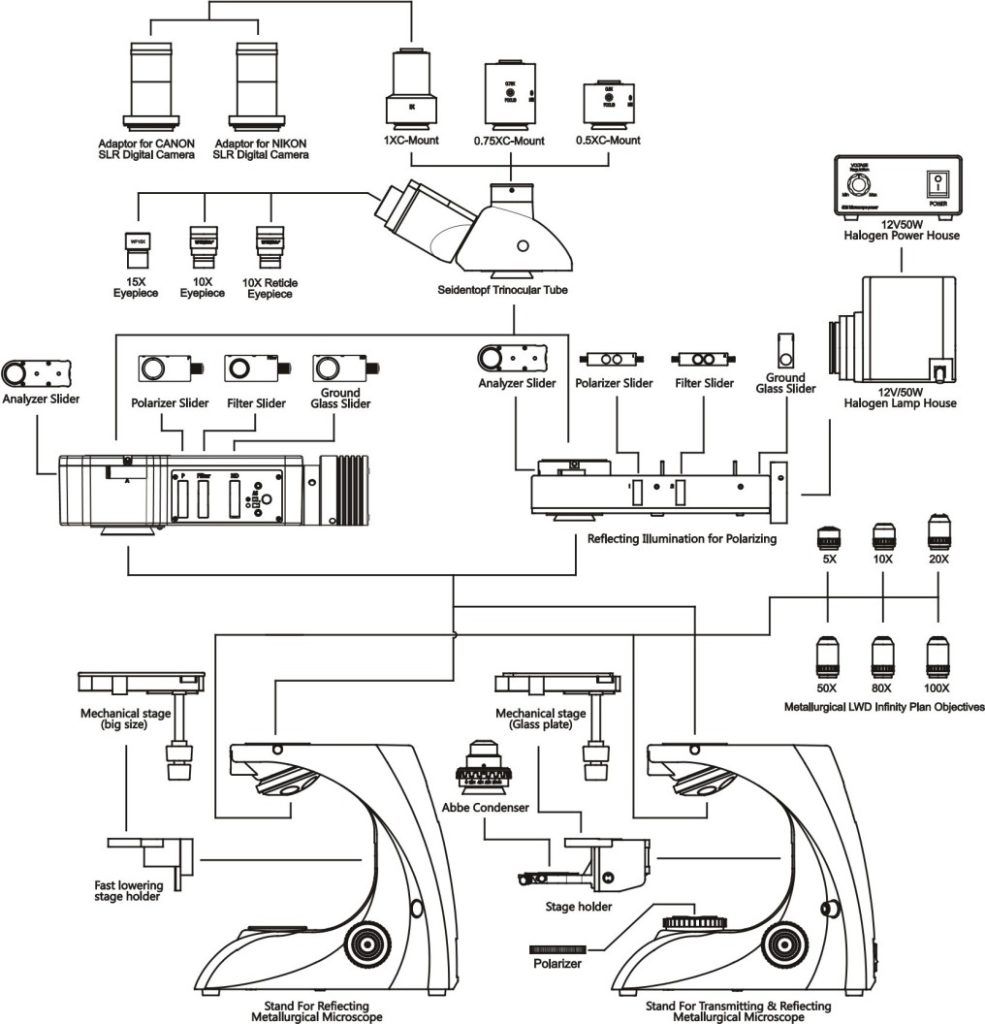

| MIT300/500 Metallurgical Microscope General Layout Diagram

| MIT300/500 Metallurgical Microscope Outfits

Item	Specification		MIT300	MIT300D	MIT500	MIT500D
Eyepiece	WF10X／22mm （adjustable）		●	●	●	●
	WF10X／22mm （adjustable , reticule 0.1mm）		●	●	●	●
Metallurgical LWD Infinity PlanObjective	LMPlan FL 5×/0.15(Semi Apochromatic Objective)	W.D=21.00mm	●		●
	LMPlan FL 10×/0.30(Semi Apochromatic Objective)	W.D=20.00mm	●		●
	LMPlan FL 20×/0.40(Semi Apochromatic Objective)	W.D=15.00mm	●		●
	LMPlan FL 50×/0.75(Semi Apochromatic Objective)	W.D=4.25mm	●		●
	LPL80X／0.80	W.D=0.85mm	○		○
	LMPlan FL 100×/0.85 (Dry)(Semi Apochromatic Objective)	W.D=3.00mm	○		○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×／0.15 BD	W.D=7.30mm		●		●
	M PLAN 10×／0.25 BD	W.D=11.50mm		●		●
	M PLAN 20×／0.40 BD	W.D= 5.60mm		●		●
	M PLAN 50×／0.75 BD	W.D= 1.60mm		●		●
Seidentopf Trinocular Head	Inclined 30°,rotatable 360°,		●	●	●	●
	Interpupilary distance: 48mm～76mm
	Light distribution (both): 100: 0（100% for eyepiece）
	80:20 (80% for trinocular head and 20% for
	eyepiece)
Nosepiece	Quintuple		●		●
	Quadplex （specially for bright /dark field objectives M26x1/36″）			●		●
Mechanical Stage	Stage size: 200mm x 150mm Travel range: 77mm x 52mm		●	●
	Stage fast lowering unit: Up-Down moving range can be increased 50mm.
	Stage size: 182mm x 140mm, Travel range: 77mm x 52mm				●	●
Polarizing Unit	Polarizer /Analyzer		●	●	●	●
Condenser	Abbe N.A.1.25, with Iris Diaphragm.				●	●
Coaxial Coarse and	Coarse stroke: 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.		●	●	●	●
Fine Focusing Unit
Reflecting Illumination	5WLED lamp DC input (Universal voltage: 100V～240V)		●		●
	12V/50W Halogen lamp (Universal voltage: 100V～240V)		○	●	○	●
Transmitting Illumination	5WLED lamp DC input (Universal voltage: 100V～240V)				●	○
	12V/30W Halogen lamp (Universal voltage: 100V～240V)				○	●
Filter for transmission lamp (Φ45)	Blue				●	●
	Green/ Amber/ Grey				○	○
Filter for Reflection lamp (Φ21)	Blue		●	●	●	●
	Green/ Amber/ Grey		○	○	○	○
Filter	Ground glass slider		●	●	●	●
C-Mount	1 X /0.75X/0.5X/0.35X( Focus Adjustable)		○	○	○	○

Item	Specification		MIT300	MIT300D	MIT500	MIT500D
Eyepiece	WF10X／22mm （adjustable）		●	●	●	●
	WF10X／22mm （adjustable, reticule 0.1mm）		●	●	●	●
Metallurgical LWD Infinity PlanObjective	LMPlan FL 5×/0.15(Semi Apochromatic Objective)	W.D=21.00mm	●		●
	LMPlan FL 10×/0.30(Semi Apochromatic Objective)	W.D=20.00mm	●		●
	LMPlan FL 20×/0.40(Semi Apochromatic Objective)	W.D=15.00mm	●		●
	LMPlan FL 50×/0.75(Semi Apochromatic Objective)	W.D=4.25mm	●		●
	LPL80X／0.80	W.D=0.85mm	○		○
	LMPlan FL 100×/0.85 (Dry)(Semi Apochromatic Objective)	W.D=3.00mm	○		○
Metallurgical LWD Infinity Plan Objectives for Bright & Dark Field	M PLAN 5×／0.15 BD	W.D=7.30mm		●		●
	M PLAN 10×／0.25 BD	W.D=11.50mm		●		●
	M PLAN 20×／0.40 BD	W.D= 5.60mm		●		●
	M PLAN 50×／0.75 BD	W.D= 1.60mm		●		●
Seidentopf Trinocular Head	Inclined 30°,rotatable 360°, Interpupilary distance: 48mm～76mm Light distribution (both): 100: 0（100% for eyepiece） 80:20 (80% for trinocular head and 20% for eyepiece)		●	●	●	●
Nosepiece	Quintuple		●		●
	Quadplex (specially for bright /dark field objectives M26x1/36″)			●		●
Mechanical Stage	Stage size: 200mm x 150mm Travel range: 77mm x 52mm Stage fast lowering unit: Up-Down moving range can be increased 50mm.		●	●
	Stage size: 182mm x 140mm, Travel range: 77mm x 52mm				●	●
Polarizing Unit	Polarizer /Analyzer		●	●	●	●
Condenser	Abbe N.A.1.25, with Iris Diaphragm.				●	●
Coaxial Coarse and Fine Focusing Unit	Coarse stroke: 25mm, Fine stroke per rotation: 0.2mm, fine division 2 μm, Tightness adjustment, upper distance limiter.		●	●	●	●
Reflecting Illumination	5WLED lamp DC input (Universal voltage: 100V～240V)		●		●
	12V/50W Halogen lamp (Universal voltage: 100V～240V)		○	●	○	●
Transmitting Illumination	5WLED lamp DC input (Universal voltage: 100V～240V)				●	○
	12V/30W Halogen lamp (Universal voltage: 100V～240V)				○	●
Filter	Blue		○	○	○	○
	Green/ Amber/ Grey		○	○	○	○
C-Mount	1 X /0.75X/0.5X (Focus Adjustable)		○	○	○	○

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 520mm×470mm×430mm      Gross Weight: 16 kgs     Net Weight: 12kgs
