MDS300 Inverted Metallurgical Microscope

MDS300 Inverted Metallurgical Microscope

  • Combination with bright field, polarizing observation
  • Widely used in the metal, mineral, and electronic industry
  • Infinity Plan LED objective, 50X~1000X magnification
  • Built-in 0.65X C-mount, economic

Click the button below to contact us:

Description

MDS300 inverted metallurgical microscope is a kind of inverted microscope. The minimum magnification of a metallographic microscope is 5X objective. The microscope uses a Plan field objective with an infinitely long working distance. The models of MDS300 and BDS300 are similar in that they can be installed with tablet holders and built-in 0.65X C-mount for convenient connection to the digital camera. The MDS300 inverted metallurgical microscope is mainly used to observe some irregular and large samples of metallographic materials.

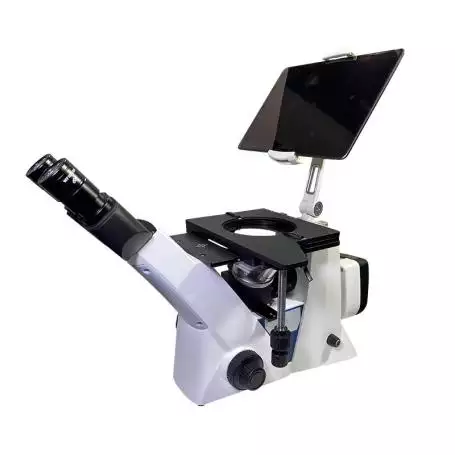

MDS300 with Tablet Holder
MDS300 with Tablet Holder

| Features of MDS300 Inverted Metallurgical Microscope

  • Large size three-layer working stage, more choice for samples.
Brand New And Humanized Butterfly Binocular Head-Tubes
  • New designed and humanized butterfly binocular head tubes can be 360° rotated to raise observing height position than normal tubes to be more convenient for users with different heights.
  • Analyzer and polarizer for simple polarizing observation.
Power Bank and Vehicle Power Supply
  • 5V-12V low voltage input to ensure safe use.
  • The power bank can be used for power supply, more convenient for field inspection and power-short conditions.
Built-in LED illumination system
  • Built-in LED illumination system which can be powered with a power bank, laptop, and vehicle power supply to ensure it is used anywhere and any condition.
YouTube video
Metallurgical Microscope MDS300 Inverted Microscope Chongqing Scope

| MDS300 Inverted Metallurgical Microscope Size(mm)

| MDS300 Inverted Metallurgical Microscope General Layout Diagram

| MDS300 Inverted Metallurgical Microscope Outfits

ItemSpecificationMDS300
EyepieceWF10X/20mm (High eye-point)
WF10X/20mm (High eye-point, adjustable Focus, Reticule 0.1mm)
Metallurgical LWD InfinityPlan ObjectivesLPL 5×/0.15W.D=15.00mm
LPL 10×/0.25W.D.= 18.48mm
LPL 20×/0.40W.D.= 8.35mm
LPL 50×/0.75W.D.= 2.55mm
LPL 80×/0.80W.D.= 0.85mm
LMPlan FL 100×/0.85(Dry)W.D.= 3.00mm
Butterfly Siedentopf HeadEyepiece tube 360°rotated,
Inclined 45°,
IPD: 48-75mm,Light distribution: 70:30(70% for eyepiece,and 30% for camera tube)
NosepieceQuadplex
Mechanical StageStage size: 180 mm×155mm,
Moving range: 75×40mm, Scale: 0.1mm,
Round slide size: φ110mm
Coaxial Coarse and Fine Focusing unitCoarse stroke: 10mm, Fine stroke per rotation: 0.2mm, fine division 2μm.
Polarizing UnitPolarizer /Analyzer
llumination5WLED Warm lamp (Input voltage:100V~240V)
FilterGrey
C-mount0.65×C-Mount (built-in)
Universal Holder for HD Screen The Max. height is 22mm

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

Packing Size: 500mm×425mm×305mm  Gross Weight: 9.0 kgs  Net Weight: 7.0 kgs
