Description
| What is the BK6000 Series Biological Microscope?
BK6000 Series Biological Microscope is a laboratory microscope. It is a kind of biological microscope mainly used for the observation and research of biological slices. It can be used in biological laboratories, hospitals, research institutes, and institutions of higher learning. This series is developed and manufactured on the basis of BK5000. The platform, condenser, and eyepiece are all updated. It is a top-end microscope. It can be upgraded to a phase contrast microscope, fluorescence microscope, and dark field microscope according to your own needs.
| Features of the BK6000 Series Biological Microscope
- Wide field eyepiece, view field up to Φ22mm， more comfortable for observation.
- Trinocular observing tube with dual transform.
- Light distribution (both): 100 : 0(100% for eyepiece) and 80 : 20(80% for trinocular head and 20% for eyepiece).

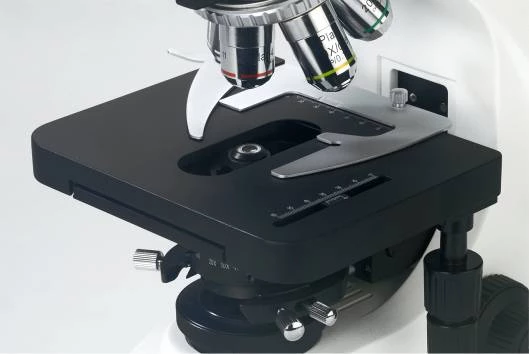

- The integrated stage is safer than the traditional stage.
| Components of BK6000 Series Biological Microscope
- Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation.
- N.A.0.9/0.13 Swing-out Condenser
- Darkfield condenser（dry）available to 4X-40X Objective
- Darkfield condenser (wet) available to 100X Objective
- Infinity Plan Objectives
- Six-hole disk fluorescence unit, More fluorescence filters can be supplied
- Polarizer, analyzer for a simple polarizing unit.
| Display of BK6000 Series Biological Microscope
BK6000 Biological Microscope Size(mm)

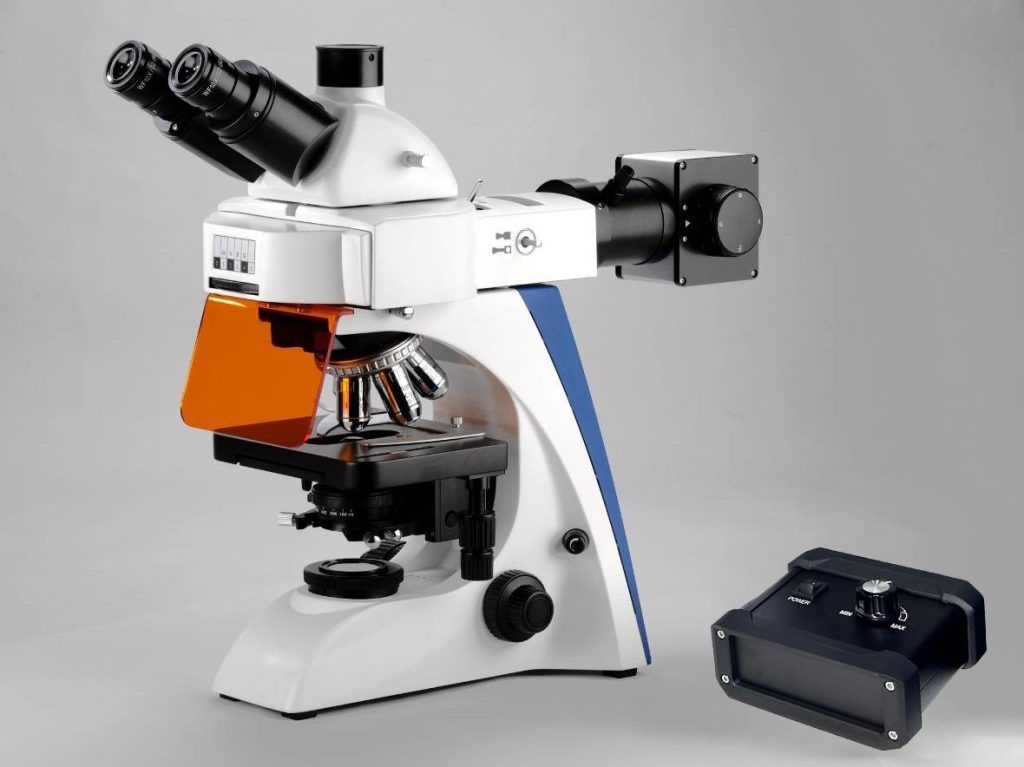

BK6000 Fluorescence Microscope Size(mm)
| BK6000 Series Biological Microscope General Layout Diagram
| BK6000 Series Biological Microscope Outfits
| Items | Specification | Outfits | |
| Eyepiece | WF10×／22mm (adjustable) | ●● | |
| Infinity Plan Objectives | PLAN 4×／0.10 | W.D.=12.10mm | ● |
| PLAN 10×／0.25 | W.D.=4.64mm | ● | |
| PLAN 20×／0.40(S) | W.D.=2.41mm | ● | |
| PLAN 40×／0.66(S) | W.D.=0.65mm | ● | |
| PLAN 100×／1.25(S, Oil) | W.D.=0.12mm | ● | |
| PLAN 2×／0.06 | W.D.=7.2mm | ○ | |
| PLAN 60×／0.80(S) | W.D.=0.33mm | ○ | |
| PLAN 100×／1.15(S, W) | W.D.=0.19mm | ○ | |
| Darkfield condenser (dry), apply to 4×- 40× objective | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
| UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
| UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
| UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
| Seidentopf Binocular Head | Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm | ● | |
| Seidentopf Trinocular Head | Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm, Light distribution (both): 100: 0 （100% for eyepiece）80:20（80% for trinocular head and 20% for eyepiece） | ○ | |
| Nosepiece | Quintuple | ● | |
| Mechanical Stage | Integrated stage, Stage size: 182 mm×140mm, Travel range: 77mm×52mm Two-slide holder | ● | |
| Swing Out Condenser | N.A. 0.9/0.13, Swing out with iris diaphragm. | ● | |
| Koehler Illumination | 12V/30W Halogen Lamp Wide voltage input: 100V～240VField diaphragm , center adjustable | ● | |
| LED Illumination | 5W LED (DC input)Wide voltage input: 100V～240VField diaphragm, center adjustable | ○ | |
| Filter | Blue | ● | |
| Green /Amber /Grey | ○ | ||
| C-mount | 1×/0.35X/0.5×/0.75×C-mount (focus adjustable) | ○ | |
| Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filters),100W mercury lamp. | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G and another filter), 5W LED fluorescence lamp. | ○ | ||
| Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
| Independent slot10× /20× /40× /100× phase contrast objective | ○ | ||
| Dark Field Unit | Darkfield condenser (wet), apply to 100× objective | ○ | |
| Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filter),100W mercury lamp. | ○ | ||
| Polarizing Attachment | Analyzer / Polarizer | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size:520mm×475mm×285mm Gross Weight: 12 kgs Net Weight: 10kgs
| Applications of BK6000 Series Biological Microscope
Our BK series biological microscopes are mostly used in related biological laboratories such as colleges and universities, medical institutions, and biological research institutes.
This series belongs to laboratory-grade microscopes, with better product configuration and more room for upgrades.
