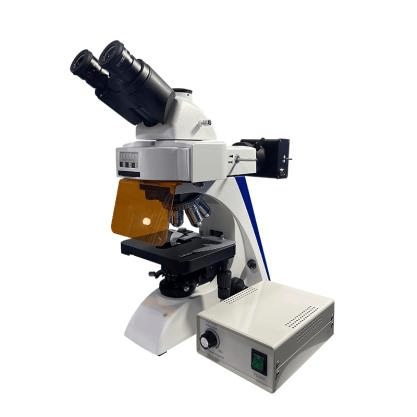

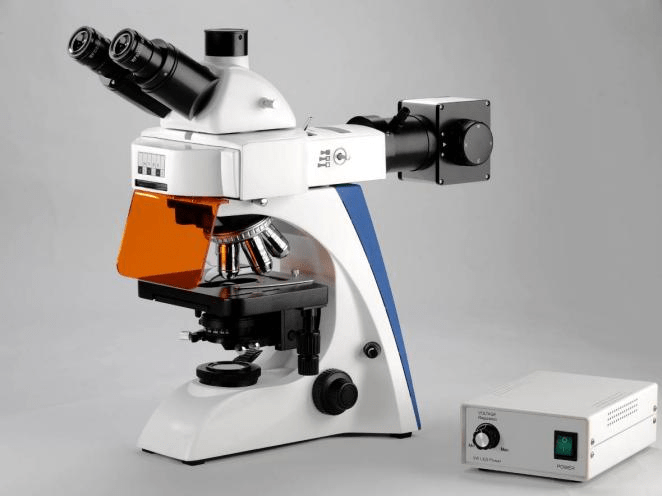

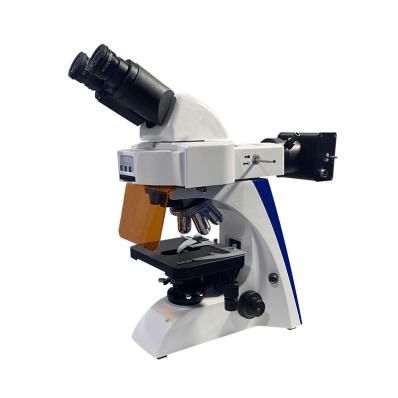

Description
BK6000-FL fluorescence microscope has two kinds of light sources to choose from, and the style of color filter can be matched arbitrarily. This fluorescence microscope is upgraded and modified on the basis of a BK6000 biological microscope. It is used to study the absorption and transportation of substances in cells, the distribution and localization of chemical substances, etc.
| Features of BK6000 Fluorescence Microscope
- Infinity optical systems with a magnification of 40X~100X and the objective lenses can be selected according to the imaging effect and magnification
- Wide field eyepiece, view field up to Φ22mm, more comfortable for observation
- Trinocular observing tube with dual transform
- Light distribution (both): 100 : 0 (100% for eyepiece), 80: 20(80% for trinocular head and 20% for eyepiece)
- The integrated stage is safer than the traditional stage
| Components of BK6000 Fluorescence Microscope

- Quintuple turret phase contrast unit with 10X/20X/40X/100X infinity plan phase contrast objective for phase contrast and bright field observation

- N.A.0.9/0.13 Swing-out Condenser
- Darkfield condenser(dry)available to 4X-40X Objective
- Darkfield condenser (wet) available to 100X Objective

- Infinity Plan Objectives

- Polarizer, analyzer for a simple polarizing unit

- Six-hole disk fluorescence unit, More fluorescence filters can be supplied
| BK6000 Fluorescence Microscope General Layout Diagram

| BK6000-FL Series Fluorescence Microscope Outfits
Items | Specification | BK6000-FL | |
Eyepiece | WF10×/22mm (adjustable) | ●● | |
Infinity Plan Objectives | PLAN 4×/0.10 | W.D.=12.10mm | ● |
PLAN 10×/0.25 | W.D.=4.64mm | ● | |
PLAN 20×/0.40(S) | W.D.=2.41mm | ● | |
PLAN 40×/0.66(S) | W.D.=0.65mm | ● | |
PLAN 100×/1.25(S, Oil) | W.D.=0.12mm | ● | |
PLAN 2×/0.06 | W.D.=7.2mm | ○ | |
PLAN 60×/0.80(S) | W.D.=0.33mm | ○ | |
PLAN 100×/1.15(S, W) | W.D.=0.19mm | ○ | |
Integrated stage Stage size: 182 mm×140mm, Travel range: 77mm×52mm, Two-slide holder | UPlanFLN 10X/0.30 | W.D.=7.68mm | ○ |
UPlanFLN 20X/0.50 | W.D.=1.96mm | ○ | |
UPlanFLN 40X/0.75 | W.D.=0.78mm | ○ | |
UPlanFLN 100X /1.30 (Oil) | W.D.=0.15mm | ○ | |
Seidentopf Binocular Head | Inclined 30°,rotatable 360°, Interpupilary distance:48mm-76mm | ○ | |
Seidentopf Trinocular Head | Inclined 30°, rotatable 360°, Interpupilary distance:48mm-76mm, Light distribution (both): 100: 0 (100% for eyepiece)80:20(80% for trinocular head and 20% for eyepiece) | ● | |
Nosepiece | Quintuple | ● | |
Mechanical Stage | Epi fluorescence unit ( six-hole disc media which can be fixed with Uv /V/B/G and another filter) ,100W mercury lamp. | ● | |
Swing Out Condenser | N.A. 0.9/0.13, Swing out with iris diaphragm. | ● | |
Koehler Illumination | 12V/30W Halogen Lamp Wide voltage input: 100V~240VField diaphragm, center adjustable | ● | |
LED Illumination | 5W LED (DC input)Wide voltage: 100V~240VField diaphragm, center adjustable | ○ | |
Filter | Blue | ● | |
Green /Amber /Grey | ○ | ||
C-mount | 1×/0.5×/0.75×C-mount (focus adjustable | ○ | |
Fluorescence Attachment | Epi fluorescence unit ( six-hole disc media which can be fixed Uv /V/B/G and another filter), 5W LED fluorescence lamp. | ○ | |
Chinese Blue fluorescence filter | ● | ||
Chinese Green fluorescence filter | ● | ||
Chinese Violet fluorescence filter | ○ | ||
Chinese Ultraviolet fluorescence filter | ○ | ||
Darkfield condenser (dry), apply to 4×- 40× objective | ● | ||
Phase Contrast Unit | Quintuple hole turret 10× /20× /40× /100× phase contrast objective | ○ | |
Independent slot10× /20× /40× /100× phase contrast objective | ○ | ||
Dark Field Unit | Darkfield condenser (wet), apply to 100× objective | ○ | |
Darkfield condenser (wet), applied to 100× objective | ○ | ||
Polarizing Attachment | Analyzer / Polarizer | ○ |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size:520mm×475mm×285mm Gross Weight: 12 kgs Net Weight: 10kgs
| BK6000 Fluorescence Microscope Size(mm)

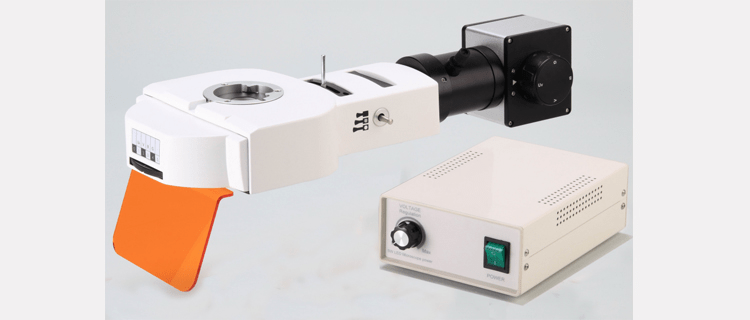

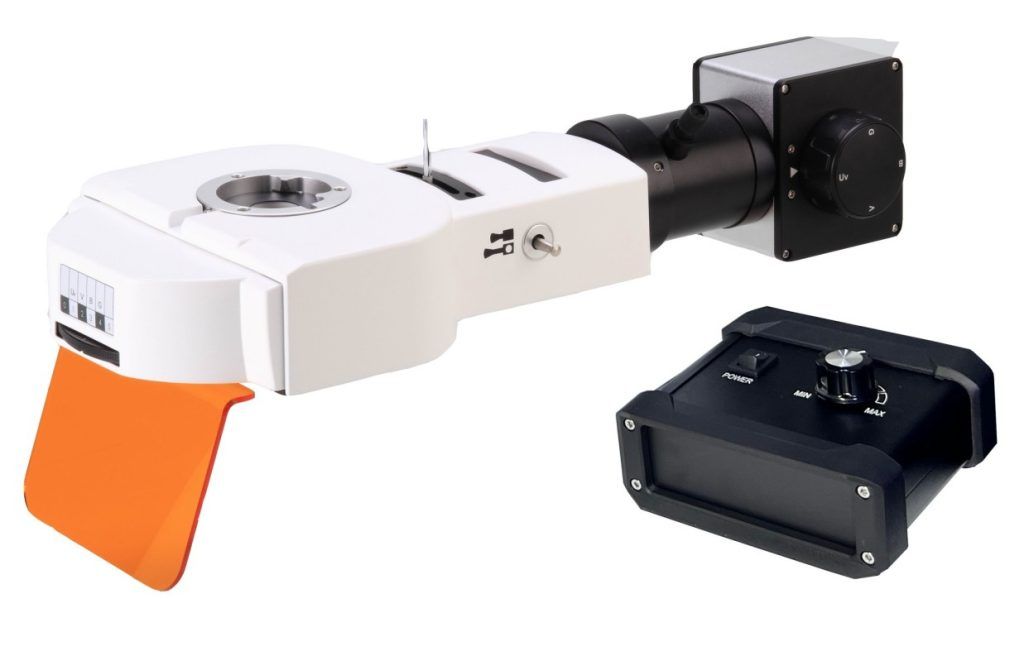

| Epi Fluorescence Device


| China Fluorescence Flters Parameter List
China Fluorescence Flters Parameter List | ||||
Item | Exciter (nm) | Dichroic (nm) | Emitter (nm) | |
Ultraviolet excitation | UV | 330-380 | 400 | 435 |
Violet excitation | V | 380-420 | 430 | 460 |
Blue excitation | B | 420-490 | 505 | 520 |
Green excitation | G | 500-550 | 575 | 590 |
