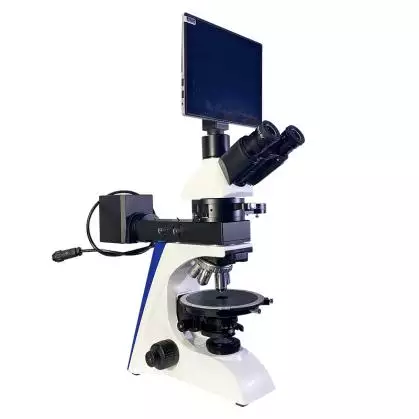

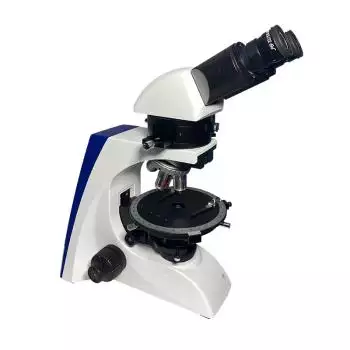

Description
BK-POL polarizing microscope is a professional laboratory instrument. This series of polarizing microscopes can be divided into three types according to the light source: transmission, reflection, and transflective. Among them, the transmission light source is used for thinner and easy-to-observe slices, the reflection light source can observe some opaque materials, and the transflective light source can be used for both. The objective lens can be matched according to your needs, and generally, all kinds of magnifications are covered in the standard configuration. According to the specifications of the head, it can be divided into binocular and trinocular. Binoculars can only be observed with the eyes, and images cannot be exported to the computer. Trinoculars can be connected to a digital camera, and there is a special operating software that can export images and measure, etc. Polarizing microscopes are mainly used to study so-called transparent and opaque anisotropic materials, including geology, biology, and medicine.
| Features of BK-POL Series Polarizing Microscope
- Infinite optical system, the lens adopts anti-mold and anti-fog technology.
- 40X~400X standard magnification, other magnifications can be selected.
- 30° tilt angle of the head, ergonomic and comfortable observation.
- Three different specifications can be selected at will, and a variety of optional accessories can be matched, with more choices.
- Professional laboratory equipment, high precision.
| Objective Specification:（”●” is standard outfits, “○” is optional accessories.）
- “T” means transmitting “R” means reflecting
- “T&R “ means transmitting and reflecting
| Objective | N.A. | Working distance(mm) | BK-POL（T） | BK-POLF（R） | BK-POLR（T&R） | |
| Non-stress Infinity Plan Objective(Transmitting) | PLAN 4X | 0.10 | 12.10 | ● | ● | |
| PLAN 10X | 0.25 | 4.64 | ● | ● | ||
| PLAN 20X (S) | 0.40 | 2.41 | ● | ● | ||
| PLAN 40X (S) | 0.66 | 0.65 | ● | ● | ||
| PLAN 60X (S) | 0.80 | 0.33 | ○ | ○ | ||
| PLAN 100X (S, Oil) | 1.25 | 0.12 | ○ | ○ | ||
| Non-stressLWD InfinityPlan Objective(Reflecting) | LMPlan FL 5× (Semi Apochromatic Objective) | 0.15 | 21.00 | ● | ○ | |
| LMPlan FL 10×(Semi Apochromatic Objective) | 0.30 | 20.00 | ● | ○ | ||
| LMPlan FL 20×(Semi Apochromatic Objective | 0.40 | 15.00 | ● | ○ | ||
| LMPlan FL 50×(Semi Apochromatic Objective) | 0.75 | 4.25 | ● | ● | ||
| LMPlan 100× (Dry)(Semi Apochromatic Objective) | 0.85 | 3.00 | ○ | ○ | ||

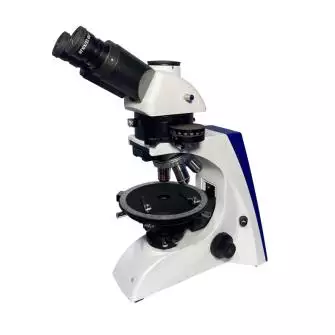

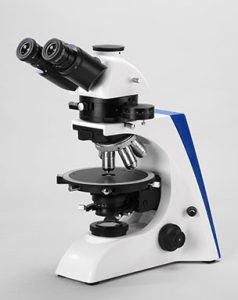

| BK-POL Transmitting Polarizing Microscope Size(mm)

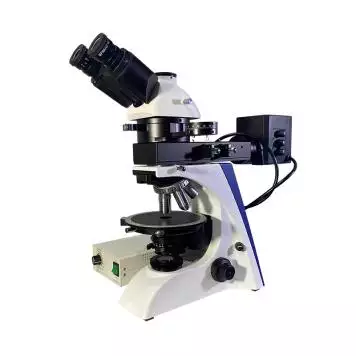

| BK-POL R Transmitting & Reflecting Polarizing Microscope Size(mm)

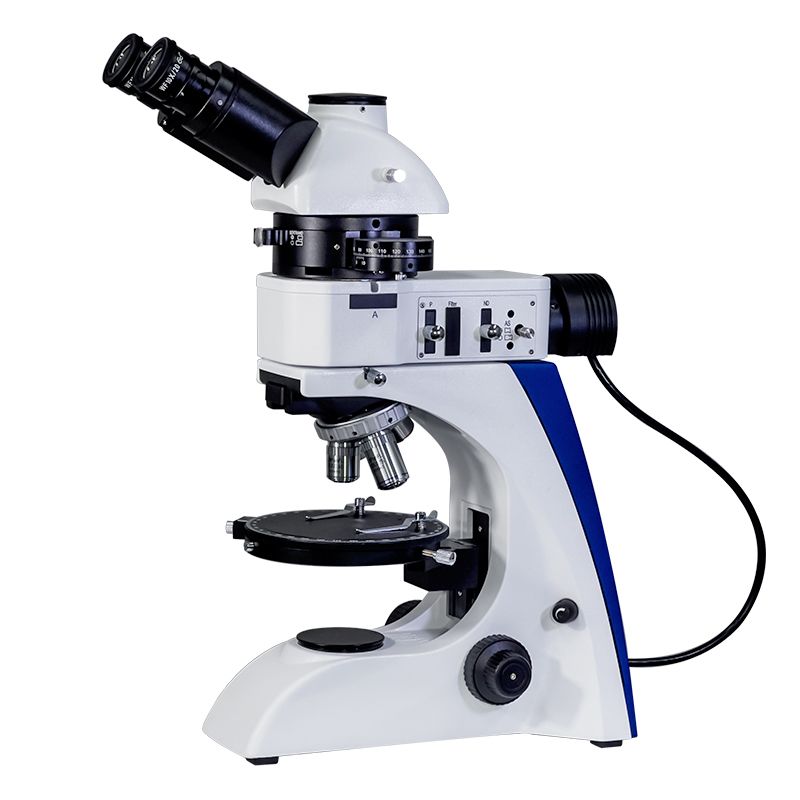

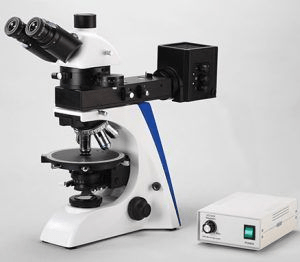

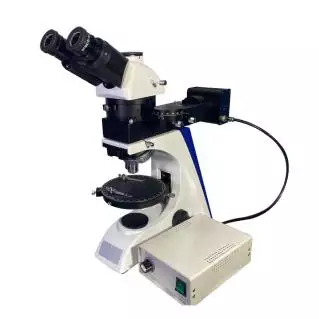

| BK-POL F Reflecting Polarizing Microscope Size(mm)

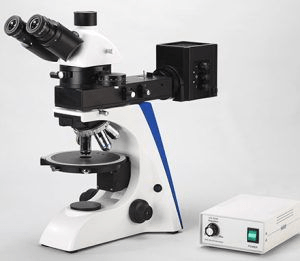

| BK-POL Series Polarizing Microscope General Layout Diagram
| BK-POL Series Polarizing Microscope Outfits

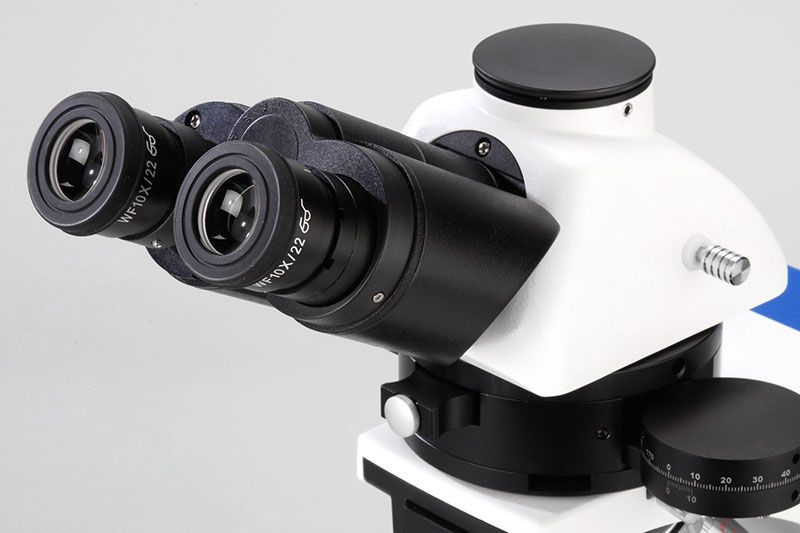

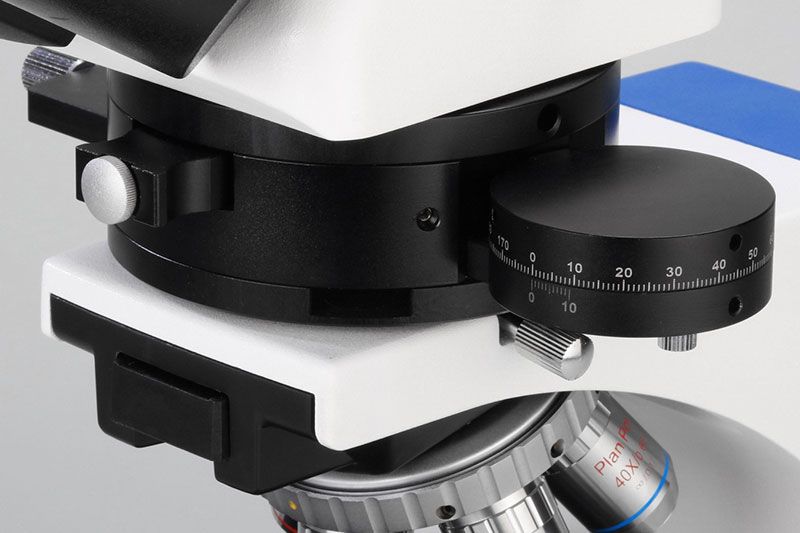

| Item | Specification | BK-POL | BK-POLF | BK-POLR | |
| Eyepiece | WF10X／22mm (adjustable) | ● | |||
| WF10X／22mm (adjustable, reticule 0.1mm) | ● | ||||
| WF10X／20mm (adjustable) | ● | ● | |||
| WF10X／20mm (adjustable, reticule 0.1mm) | ● | ● | |||
| Professional Polarizing Seidentopf Binocular Head | A.0.9/0.13, polarizing unit (with scale, rotatable 360°, can be locked) | ● | ● | ● | |
| Professional Polarizing Seidentopf Trinocular Head | Inclined 30°, Rotatable 360°,Interpupilary Distance : 48mm ~76mm,Light distribution（both):100: 0（100% for eyepiece）80:20（80% for trinocular head and 20% for eyepiece） | ○ | ○ | ○ | |
| Non-stress Infinity Plan Objective(Transmitting) | PLAN 4X／0.10 | W.D.= 12.1mm | ● | ● | |
| PLAN 10X／0.25 | W.D.= 4.64mm | ● | ● | ||
| PLAN 20X／0.40(S) | W.D.=2.41mm | ● | ● | ||
| PLAN 40X／0.66(S) | W.D.=0.65mm | ● | ● | ||
| PLAN 60X／0.80(S) | W.D.=0.33mm | ○ | |||
| PLAN 100X／1.25(S，Oil) | W.D.=0.12mm | ○ | |||
| Non-stress LWD InfinityPlan Objective(Reflecting) | LMPlan FL 5×/0.15 (Semi Apochromatic Objective) | W.D.=21.00mm | ● | ○ | |
| LMPlan FL 10×/0.30(Semi Apochromatic Objective) | W.D.= 20.00mm | ● | ○ | ||
| LMPlan FL 20×/0.40(Semi Apochromatic Objective) | W.D.= 15.00mm | ● | ○ | ||
| LMPlan FL 50×/0.75(Semi Apochromatic Objective) | W.D.= 4.25mm | ● | ● | ||
| LMPlan 100×/0.85（Dry）(Semi Apochromatic Objective) | W.D.= 3.00mm | ○ | ○ | ||
| Nosepiece | Quintuple (center adjustable) | ● | ● | ● | |
| POL Media | Analyzer rotatable 360°, module type, can be locked | ● | ● | ● | |
| A.0.9/0.13, polarizing unit (with scale, rotatable 360°, can be locked) | ● | ● | ● | ||
| Slip | Λslip (First Class Red) | ● | ● | ● | |
| λ/4 slip | ● | ● | ● | ||
| Quartz wedge (Ⅰ～ Ⅳ) | ● | ● | ● | ||

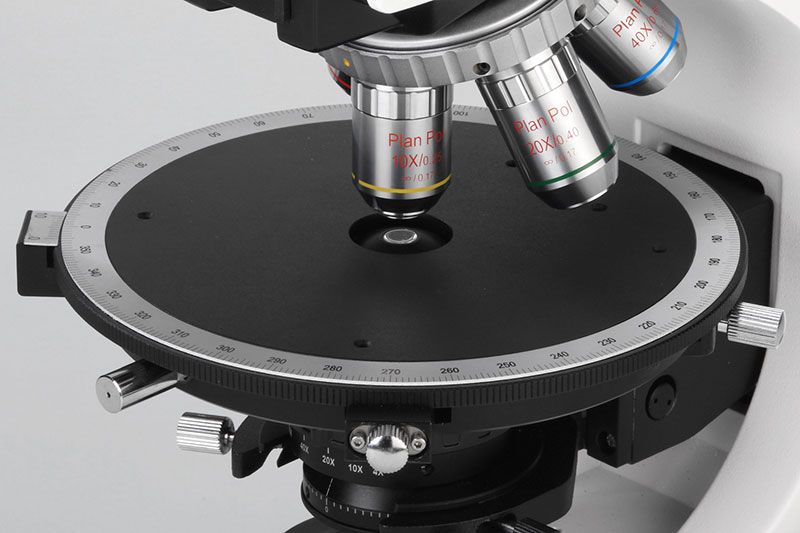

| Revolving Round Stage | Rotatable 360°, center adjustable, can be locked. Diameter Φ174mmdivision 1°, vernier division 6’. | ● | ● | ● | |
| Swing-out Condenser | A.0.9/0.13, polarizing unit (with scale, rotatable 360°,can be locked) | ● | ● | ||
| Coaxial Coarse and Fine Focusing Unit | Coarse stroke 25mm, Fine stroke per rotation:0.2mm, fine division 2 μm | ● | ● | ● | |
| Transmitting/ Reflecting Illumination | 5WLED lamp DC input(Universal voltage:100V～240V） | ● | ● | ● | |
| Transmitting Illumination | 12V/30W Halogen lamp(Universal voltage:100V～240V） | ○ | ○ | ||
| Reflecting Illumination | 12V/50W halogen lamp(Universal voltage:100V~240V） | ○ | ○ | ||
| Filter | Blue/ Amber/ Green/ Neutral | ○ | ○ | ○ | |
| Attached Polarizing Mechanical Stage | ○ | ○ | ○ | ||
| C-Mount | 1X /0.75 X /0.5 X (Focus adjustable) | ○ | ○ | ○ | |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
| Packing & Delivery
Polarizing series microscopes are packed in standard cartons. Except for the slightly smaller carton of the transmission polarizer, the other two models are large cartons, because polarizer accessories need to be placed inside. There are various modes of transportation, you can communicate with us in detail according to your needs.
| Packaging Parameters | Packing Size | Gross Weight | Net Weight |
| BK-POL | 520mm×470mm×285mm | 12.5 kgs | 10 kgs |
| BK-POL R | 520mm×470mm×430mm | 16 kgs | 12.5 kgs |
| BK-POL F | 520mm×470mm×430mm | 15 kgs | 11.5 kgs |
