BDS500-FL Inverted Fluorescence Microscope
- EPI fluorescence device, B/G/Uv/V filters
- Bright-field and phase contrast observing
- A special light port for the SLR digital camera, 7°inclined up
- 4-hole rotating disc phase contrast condenser for standard to change bright field and phase contrast fast
Click the button below to contact us:
Description
The BDS500-FL inverted fluorescence microscope is a professional experimental instrument. In addition to the eyepiece channel, this model can also be connected to a digital camera and a SLR camera. The BDS500-FL microscope is one of our top-of-the-line biological laboratory equipment. It is mainly used to study organisms with fluorescent properties, ordinary organisms, etc. It can be used not only for fluorescence observation but also for bright field observation and phase contrast observation.
This is also a trinocular microscope. After connecting to the digital camera, you can use software to measure and shoot observation images. The EPI fluorescence device can add up to four sets of fluorescence filters: Blue/Green/Ultraviolet/Violet.
![BDS500-FL 主图3](http://www.cqscopelab.com/wp-content/uploads/2024/07/BDS500-FL-主图3.jpg)
| Features of BDS500-FL Inverted Fluorescence Microscope

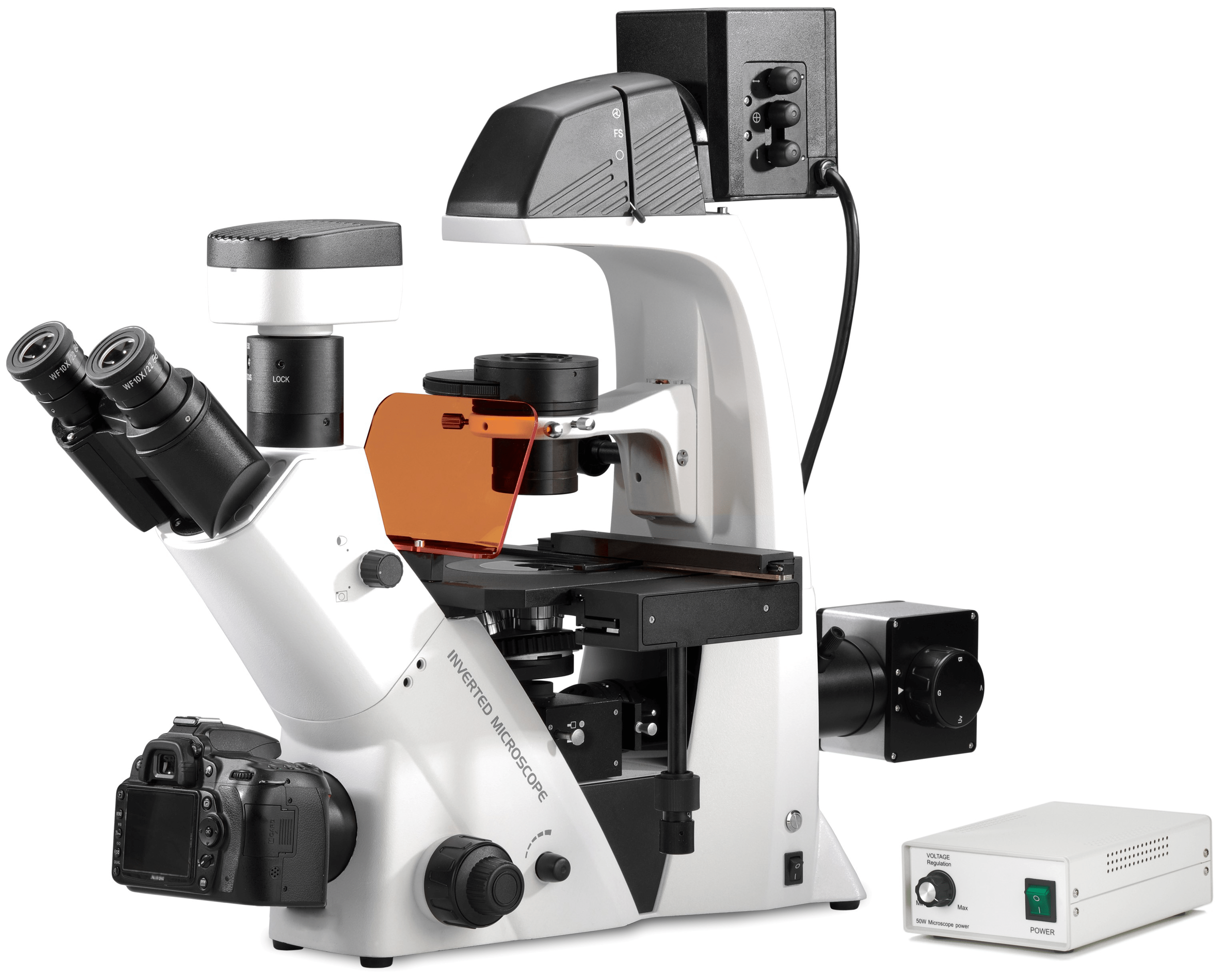

- Trinocular biological microscope, connected to digital camera and SLR camera.
- Magnification 40X~400X, multiple optional objective lenses.
- Three observation modes: fluorescence, phase contrast, bright field.
![](http://www.cqscopelab.com/wp-content/uploads/2023/05/图片20.png)
![](http://www.cqscopelab.com/wp-content/uploads/2023/06/图片22.png)
| Culture Dish Holder of BDS500-FL Inverted Fluorescence Microscope
35mm 54mm 65mm Blood Cell Counter Glass Holder Universal Holder Knob can be changed by left or right
| Fluorescence Illumination

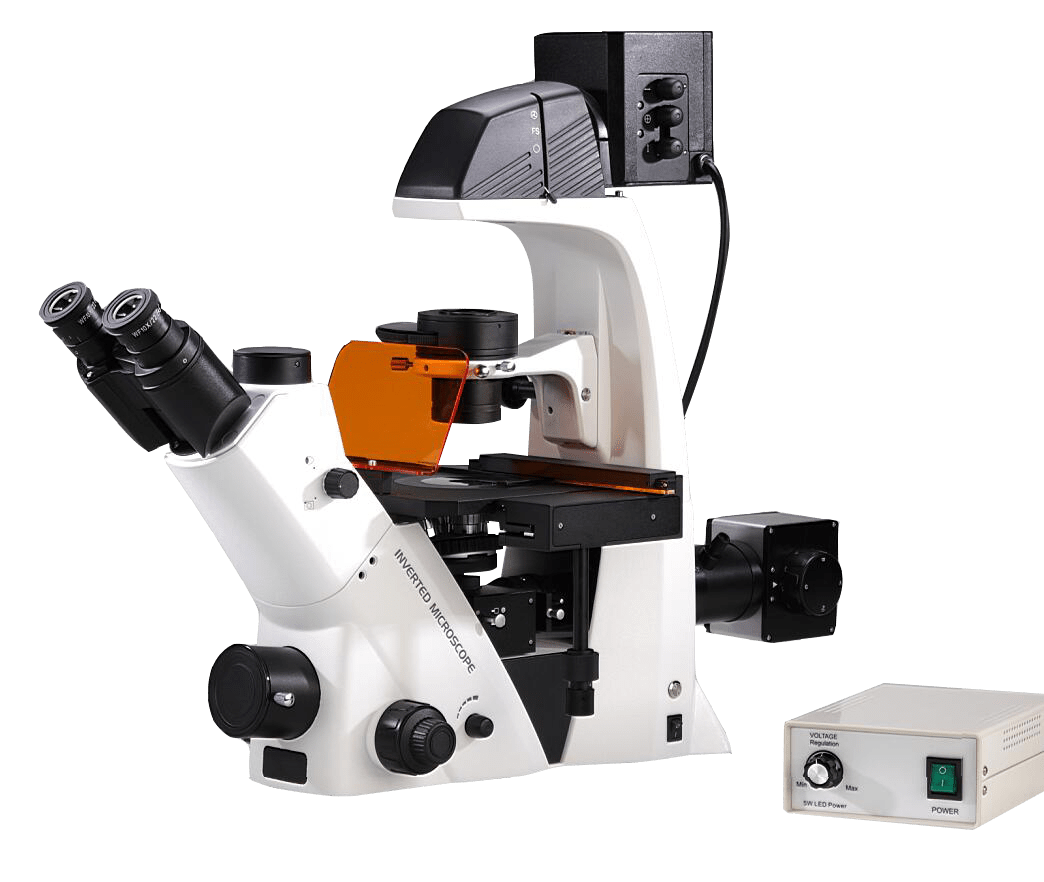

Regarding fluorescence light sources for fluorescence microscopes, there are two commonly available options: 100W mercury lamps and 5W LED lamps.

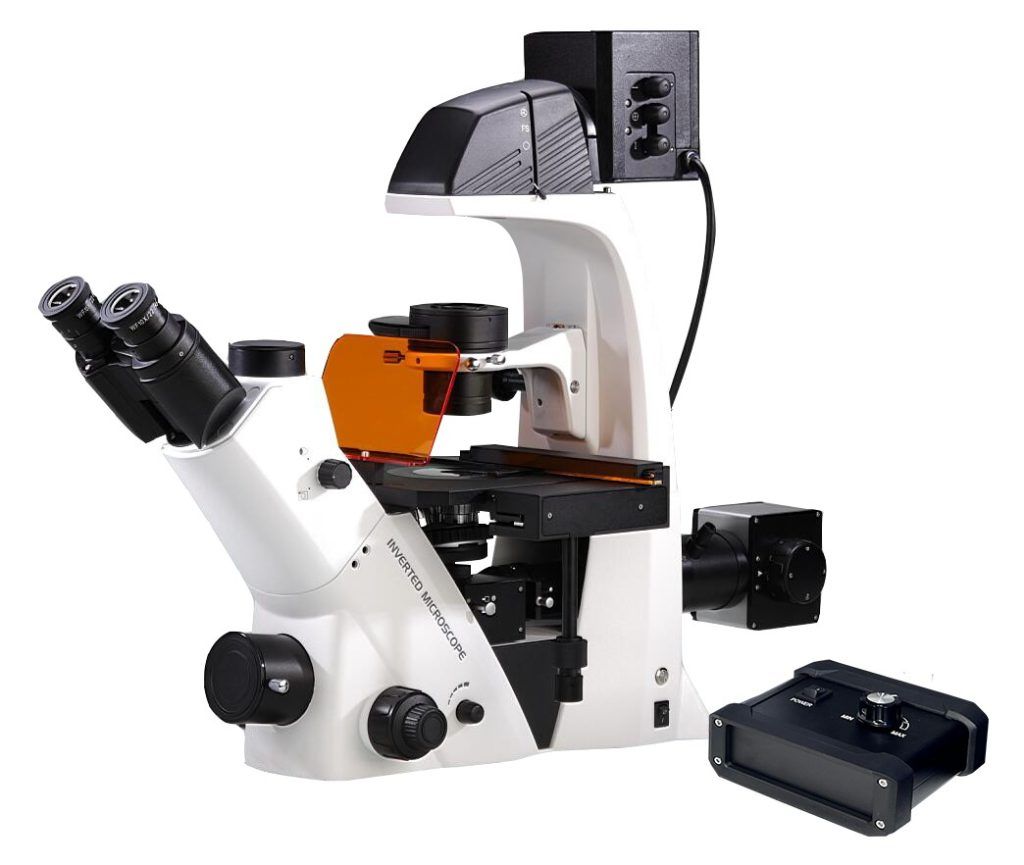

Our LED fluorescent device is now updated. For groups 1 to 3 of fluorescent filters, we use an integrated fluorescent device, which installs both the light box and the fluorescence filter in the same device. If there are 4 group of fluorescence filters, the previous device will still be used.
![BDS5000-FL 100W mercury Lmap 详情图](http://www.cqscopelab.com/wp-content/uploads/2024/07/BDS5000-FL-100W-mercury-Lmap-详情图.jpg)
![](http://www.cqscopelab.com/wp-content/uploads/2024/03/BDS500-FL-13-LED-1024x947.webp)
![](http://www.cqscopelab.com/wp-content/uploads/2024/03/BDS500-FL4LED-1024x865.webp)
| Objective Parameter List (Cover-glass thickness1.1mm)
Objectives | N.A. | Working distance(mm) | |
LWD Infinity Plan Objectives | L Plan FL 4X | 0.11 | 12.1 |
L Plan FL 10X | 0.25 | 10.3 | |
L Plan FL 20X | 0.45 | 5.8 | |
L Plan FL 40X | 0.65 | 5.1 | |
LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X(Both for Bright Field & Phase Contrast) | 0.10 | 9.2 |
L Plan FL PHP 10X(Both for Bright Field & Phase Contrast) | 0.25 | 10.3 | |
L Plan FL PHP 20X(Both for Bright Field & Phase Contrast) | 0.45 | 5.8 | |
L Plan FL PHP 40X(Both for Bright Field & Phase Contrast) | 0.65 | 5.1 |
- LWD Infinity Plan Objectives
- LWD Infinity Plan Phase Contrast Objectives
| BDS500-FL Inverted Fluorescence Microscope Size(mm)
![](http://www.cqscopelab.com/wp-content/uploads/2022/08/图片41-scaled.webp)
| BDS500-FL Inverted Fluorescence Microscope General Layout Diagram
![](http://www.cqscopelab.com/wp-content/uploads/2022/08/图片42-scaled.webp)
| BDS500-FL Inverted Fluorescence Microscope Outfits
Item | Specification | Outfits | ||
Eyepiece | WF10X/22mm (adjustable) | ●● | ||
Centering telescope | ● | |||
LWD Infinity Plan Objectives | L Plan FL 4X/0.11 | W.D.=12.1mm | ● | |
L Plan FL 10X/0.25 | W.D.=10.3mm | ○ | ||
L Plan FL 20X/0.45 | W.D.=5.8mm | ○ | ||
L Plan FL 40X/0.65 | W.D.=5.1mm | ○ | ||
LWD Infinity Plan Phase Contrast Objectives | L Plan FL PHP 4X/0.10(Both for Bright Field & Phase Contrast) | W.D.=9.2mm | ○ | |
L Plan FL PHP 10X/0.25(Both for Bright Field & Phase Contrast) | W.D.=10.3mm | ● | ||
L Plan FL PHP 20X/0.45(Both for Bright Field & Phase Contrast) | W.D.=5.8mm | ● | ||
L Plan FL PHP 40X/0.65(Both for Bright Field & Phase Contrast) | W.D.=5.1mm | ● | ||
Annular Spot | 10×/20×/ 40× | ● | ||
4× | ● | |||
Seidentopf Trinocular Head | Inclined 45°, interpupillary distance: 48-76mmLight distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ● | ||
SeidentopfTrinocular Head | Inclined 45°, interpupilary distance: 48-76mmLight distribution (both): 100: 0 and 0:100 (100% for eyepiece or 100% for trinocular head) | ○ | ||
Adaptor for Digital Photography | 100% light for Photography Port(Adaptor for CANON or NIKON SLR Digital Photography Camera) | ● | ||
Nosepiece | Quintuple | ● | ||
Mechanical Stage | Stage size: X×Y 210×241mm, Round slide size:φ110mm, Attached mechanical stage(available for 96 holes plate, moving range X×Y:128×80mm.) | ● | ||
Culture Dish Holder | 65mm | ○ | ||
54mm | ● | |||
35mm | ○ | |||
blood cell counter | ○ | |||
Glass Holder | ○ | |||
Universal Holder | ○ | |||
Condenser | 4-hole rotating disc phase contrast condenser N.A.0.4, W.D.45mm, It can be up-down adjusting | ● | ||
Koehler Illumination | 12V/50W Halogen, universal voltage: 100V~240V | ● | ||
5WLED DC input, universal voltage: 100V~240V | ○ | |||
Filter | Blue | ● | ||
Green | ● | |||
Amber / Grey | ○ | |||
C-mount | 1 X /0.5X /0.75X C-Mount (focus adjustable) | ○ | ||
Epi fluorescence Illumination | Epi fluorescence media unit, field diaphragm, center adjustable. | ● | ||
100W mercury lamp, 5WLED (input voltage:100V~240V) | ● | |||
B, G, V, UV fluorescence filters can be chosen | ● | |||
Infinity Fluorescence objective | L Plan Fluor 10X/0.3 | W.D.=10mm | ○ | |
L Plan Fluor 20X/0.45 | W.D.=6.6mm | ○ | ||
L Plan Fluor 40X/0.6 | W.D.=3.5mm | ○ |
Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.
Packing Size: 660mm×590mm×325mm Gross Weight: 18 kgs Net Weight: 13.5 kgs
| Epi Fluorescence Device
![](http://www.cqscopelab.com/wp-content/uploads/2024/03/倒置显微镜LED荧光装置-1024x601.webp)
![](http://www.cqscopelab.com/wp-content/uploads/2024/03/倒置显微镜汞灯荧光装置-1024x683.webp)
![](http://www.cqscopelab.com/wp-content/uploads/2022/08/微信图片_20240311161455-1024x576.webp)
| China Fluorescence Flters Parameter List
China Fluorescence Flters Parameter List | ||||
Item | Exciter (nm) | Dichroic (nm) | Emitter (nm) | |
Ultraviolet excitation | UV | 330-380 | 400 | 435 |
Violet excitation | V | 380-420 | 430 | 460 |
Blue excitation | B | 420-490 | 505 | 520 |
Green excitation | G | 500-550 | 575 | 590 |
