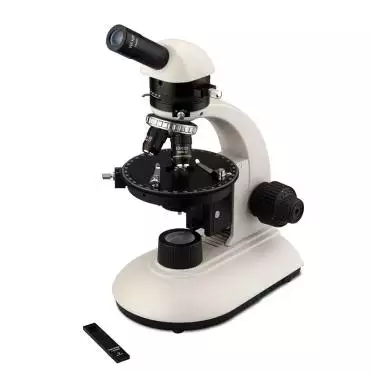

B-POL Polarizing Microscope

  • Transmitting polarizing instrument
  • 40X~600X magnification, finite optical system
  • The eyepiece is 10X/18mm
  • Equipped with analyzers and polarizers, both of which can be moved and rotated

Click the button below to contact us:

Description

B-POL is a professional polarizing microscope. The monocular shape is simple and stylish, allowing for direct observation. It is suitable for students to use, or those who are beginners in microscopy. B-POL polarizing microscope is equipped with a 0-90° analyzer, and the method of using the product is easy to learn. Our model is the basic model in the polarizing series microscope, with low price, controllable cost, and good observation effect.

| Features of B-POL Polarizing Microscope

  • Monocular head, inclined 30 degrees. The angle of the head can be adjusted, the eyepiece is 10X/18mm.
  • Polarizing microscopes are equipped with analyzers and polarizers, both of which can be moved and rotated.
  • The objective lens adopts a stress-free finite apochromatic objective lens, including 4X~60X magnification.
  • Currently, this model only has 3W LED low-voltage DC input models. Safe use of electricity, and easy to connect to the power supply.
YouTube video
Polarizing Microscope B-POL Monocular Model from Chinese Microscope Factory

| B-POL Polarizing Microscope Outfits

ItemsSpecificationB-POL
EyepieceWF 10×-18mm (Cross, Reticule 0.1mm)
WF 16×-13mm
Non-stressAchromatic Objective
10×
40× (S)
20×
60× (S)
Mono HeadInclined 30°, Rotatable 360°
NosepieceQuadplex
Analyzer Unit0-90°,It can be moved out of the optical path for single
polarizing observe.
Bertrand LensIt can be moved out of the optical path
λ SlipFirst Class Red
1/4λ Slip
Quartz Wedge(Ⅰ-Ⅳ Class)
Revolving Round StageRotatable 360°, Division 1°, Vernier division 6’, can be locked. Diameter Φ142mm
Polarizing Attached Mechanical Stage
CondenserAbbe N.A. 1.25
Polarizing UnitIt can be moved out of the optical path.
Illumination3WLED Lamp DC input, wide voltage 100V-240V
12V/20W halogen lamp, wide voltage 100V-240V

Note: “●”In Table Is Standard outfits, “○” Is Optional Accessories.

| B-POL Polarizing Microscope Size(mm)

| Package and Delivery

Our microscopes are uniformly packaged in foam and cartons without any logo or nameplate. After packing, it will be shipped by the transportation method confirmed with the customer. We accept sea freight, air freight express delivery, etc. If the customer has his own freight forwarder, it can also be shipped directly to the warehouse of the customer’s freight forwarder.

Package and Delivery

| Factory

This is our own factory, all microscope products are produced in our factory. The factory has a metalworking workshop, an optical workshop, an assembly workshop, and a packaging workshop. The processing machinery used in the metalworking workshop is the Brother brand imported from abroad. The optical workshop is to polish our lenses. The entire assembly workshop is a dust-free workshop to ensure the accuracy of the microscope. In addition to the traditional microscope models, our factory also updates and changes the configuration of these microscopes every year, and produces products for laboratories. In addition, we have various qualification certificates, such as ISO9001, CE, ISO14001, ISO45001, etc.

Factory

| FAQ

A1: Yes, you can. We have a logo customization service.

A2: We provide a one-year free after-sales service, during this period due to the machine itself caused by the parts damaged, we can provide free replacement parts. In addition, after-sales support is provided online.

A3: The minimum order quantity is one unit.

A4: All products are produced by our own factories and cooperative factories.

A5: We have our own factory, product quality and after-sales are special docking.
