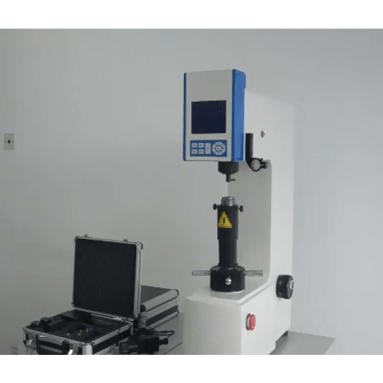

570HAD Digital Universal Hardness Tester

  • Support the determination of Blowy’s common scale

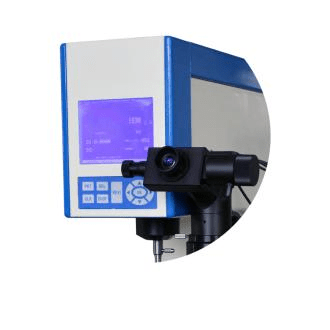

  • Digital large-screen display and operation, support conversion of various scales
  • Selection of Brinell, Rockwell, and Vickers three test modes
  • Test results can be saved for checking or be printed out, automatic calculation of maximum, minimum, and average value

Click the button below to contact us:

Description

570HAD digital display Brinell hardness tester can be used for Brinell, Rockwell, and Vickers tests. It is a multifunctional hardness tester with seven test forces, which can meet various hardness test requirements.

After the initial test force is manually loaded, the total test force loading, holding, and unloading are automatically completed, and the operation is simple and fast. The current test scale, test force, test indenter, holding time, hardness conversion value, indenter type, etc. can be displayed and set.

This hardness tester is suitable for non-ferrous metals, hardened steel, surface-hardened steel, cast iron, hard alloy steel, etc. It can also be used to measure softer metals, chemical treatment and surface heat treatment, etc.

| Features of 570HAD Digital Universal Hardness Tester

  • Selection of Brinell, Rockwell, and Vickers three test modes;
  • Conversion scales of different kinds of hardness;
  • Test results can be saved for checking or be printed out, automatic calculation of maximum, minimum, and average value;
  • With RS232 interface for connecting to the computer.

| Applications of 570HAD Digital Universal Hardness Tester

570HAD digital universal hardness testers are suitable for hardened and surface hardened steel, hard alloy steel, casting parts, non-ferrous metals, various kinds of hardening and tempering steel and tempered steel, carburized steel sheet, soft metals, surface heat treating and chemical treating materials, etc.

YouTube video
570HAD Digital Brinell Rockwell & Vickers Hardness Tester

| Technical Specification of 570HAD Digital Universal Hardness Tester

Model570HAD
Rockwell Test Force60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)
Brinell Test Force30kgf (294.2N), 31.25kgf (306.5N), 62.5kgf (612.9N), 100kgf (980.7N), 187.5kgf (1839N)
Vickers Test Force30kgf (294.2N), 100kgf (980.7N)
IndenterDiamond Rockwell Indenter, Diamond Vickers Indenter, Φ1.588mm, Φ2.5mm, Φ5mmBall Indenter
Hardness ReadingLCD Screen Display
Test ScaleHRA, HRBW, HRC, HRD, HBW1/30, HBW2.5/31.25, HBW2.5/62.5, HBW2.5/187.5, HBW5/62.5, HBW10/100, HV30, HV100
Conversion ScaleHV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
MagnificationBrinell: 37.5×, Vickers: 75×
Min. Measuring UnitBrinell: 0.5μm, Vickers: 0.25μm
Hardness ResolutionRockwell: 0.1HR, Brinell: 0.1HBW, Vickers: 0.1HV
Dwell Time0~60s

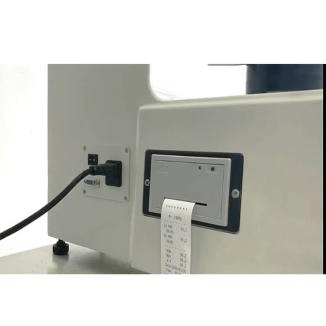

Data OutputBuilt-in Printer,RS232 Interface
Max. Sample HeightRockwell: 185mm, Brinell: 100mm, Vickers: 115mm
Throat Depth165mm
Power SupplyAC220V,50Hz
Execute StandardISO 6508,ASTM E18,JIS Z2245,GB/T 230.2ISO 6506,ASTM E10,JIS Z2243,GB/T 231.2ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
Dimension520×240×740mm, Packing Dimension: 650×370×980mm
WeightNet Weight: 80kg, Gross Weight: 105kg

| Packing List of 570HAD Digital Universal Hardness Tester

NameQtyNameQty
Instrument Main Body1 setDiamond Rockwell Indenter1 pc
Diamond Vickers Indenter1 pcΦ1.588mm,Φ2.5mm,Φ5mm Ball Indentereach 1 pc
Slipped Test Table1 pcΦ150mm Flat Anvil1 pc
Φ74mm Flat Anvil1 pcΦ40mm V-shaped Anvil1 pc

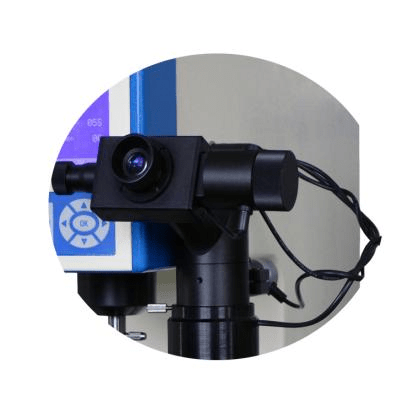

15× Digital Measuring Eyepiece1 pc2.5×, 5× Objectiveeach 1 pc
Hardness Block 60~70 HRC1 pcHardness Block 20~30 HRC1 pc
Hardness Block 80~100 HRBW1 pcHardness Block 700~800 HV301 pc
Hardness Block 150~250 HBW 2.5/187.51 pcMicroscope System (include the inside light and outside light)1 set

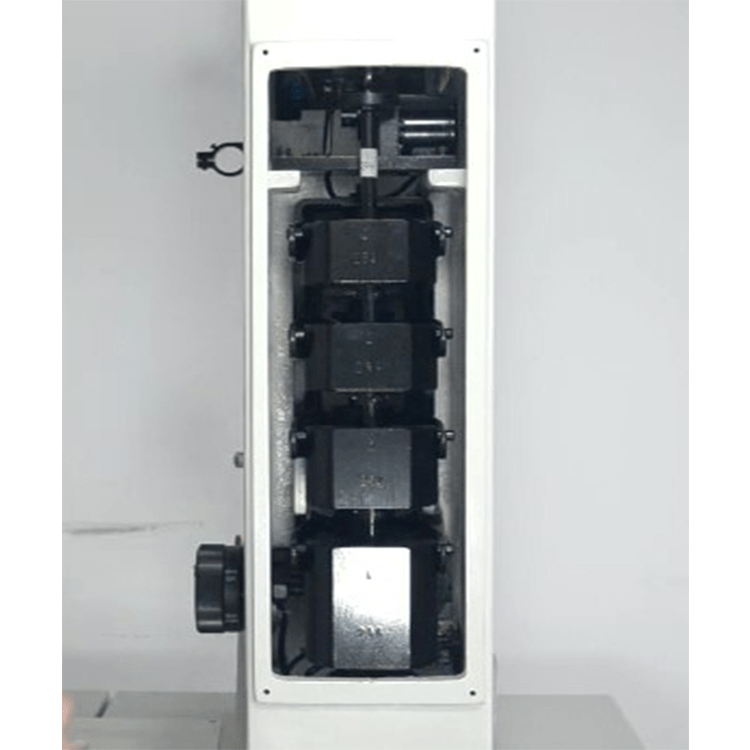

Weights 0, 1, 2, 3, 45 pcsPower Cable1 pc
Fuse 2A2 pcsHorizontal Regulating Screw4 pcs
Level1 pcSpanner1 pc
Screw Driver1 pcAnti-dust Cover1 pc
Usage Instruction Manual1 copy

| Package

Our products are packed in standard wooden boxes, especially for export. Since the 570HAD digital universal hardness tester is a precision instrument, the product is fixed in a wooden box with straps and screws to prevent bumps and damage during transportation.

Precision instruments need to be handled with care and need to be fixed on their own workbench after disassembly.
