The Rockwell hardness tester is a hardness tester with manual loading and unloading test force, which is suitable for the Rockwell hardness determination of ferrous metals and non-ferrous metals.

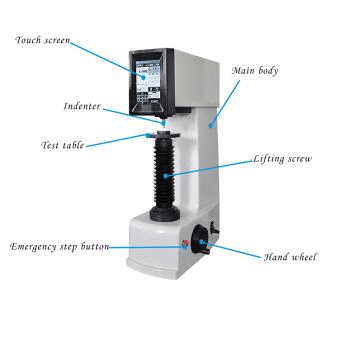

560RSSZ Automatic Rockwell hardness tester with a good aesthetic aspect, complete functions, easy operation, intuitive display, and good reliability, is a high-tech product combining the mechanic and electric features, which is suitable for the Rockwell and superficial Rockwell hardness test.
| Features of 560RSSZ Automatic Rockwell Hardness Tester
- Support for all the Rockwell and superficial Rockwell scales;
- Support for conversion scales of different kinds of hardness;
- With arc correction function;
- Touch screen display and operation, dynamically display the working state of the lifting screw and the indenter;
- Press operation for the test table, fast-rising or dropping;
- One key to complete the rising of the specimen, loading dwell and unloading of the indenter, displaying of the hardness value, homing of the test table;
- With the data storage function, and automatic calculation of the maximum, minimum, and average of the hardness value, the test results can be printed for output, and with an RS232 interface users can connect it to the computer for output.
| Technical Specification of 560RSSZ Automatic Rockwell Hardness Tester
|Initial Test Force||3kgf (29.42N), 10kgf (98.07N)|
|Total Test Force||15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N)|
|Indenter||Diamond Rockwell Indenter, ф1.588mmBall Indenter|
|Loading Method||Automatic (Loading/Dwell/Unloading)|
|Operation||Automatic Rising and Homing, One Key to Complete|
|Hardness Reading||Touch Screen|
|Test Scale||HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRVHR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y|
|Conversion Scale||HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBW|
|Data Output||Built-in Printer, RS232 Interface|
|Max. Height of Specimen||310mm|
|Power Supply||AC220V, 50Hz|
|Execute Standard||ISO 6508, ASTM E18, JIS Z2245, GB/T 230.2|
|Dimension||535×330×890mm, Packing Dimension: 820×460×1170mm|
|Weight||Net Weight: 80kg, Gross Weight: 100kg|
| Packing List of 560RSSZ Automatic Rockwell Hardness Tester
|Instrument Main Body||1 set||Diamond Rockwell Indenter||1 pc|
|ф1.588mmBall Indenter||1 pc||Middle Plane Test Table||1 pc|
|Large Plane Test Table||1 pc||V-shaped Test Table||1 pc|
|Inner Hexagon Spanner||1 pc||Spanner||1 pc|
|Hardness Block 60~70 HRC||1 pc||Hardness Block 20~30 HRC||1 pc|
|Hardness Block 80~100 HRB||1 pc||Hardness Block 70~85 HR30T||1 pc|
|Hardness Block 65~80 HR30N||1 pc||Fuse 2A||2 pcs|
|Power Cable||1 pc||Anti-dust Cover||1 pc|
|Usage Instruction Manual||1 copy|
| Application Range of 560RSSZ Automatic Rockwell Hardness Tester

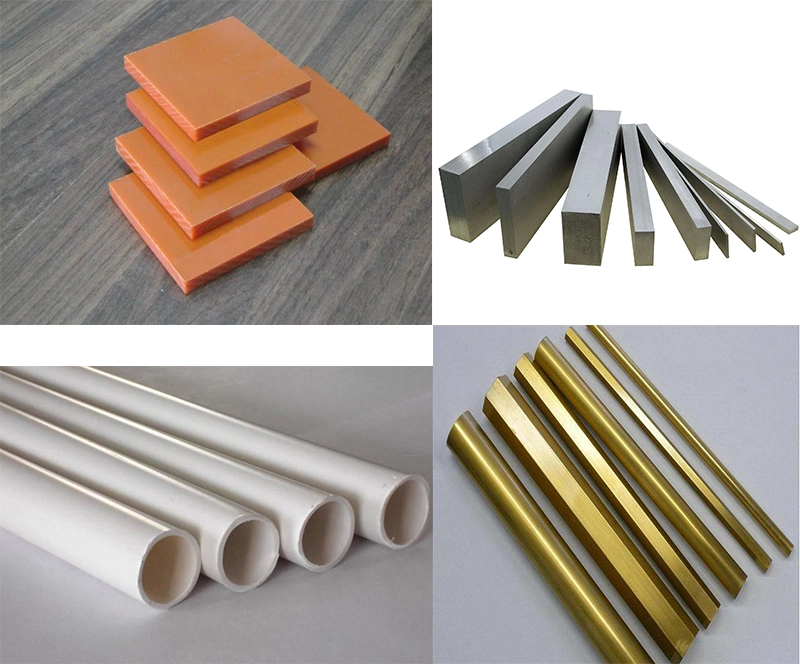

560RSSZ Automatic Rockwell hardness tester is suitable for quenching, quenching, and tempering, annealing, chilled castings, and hardness determination of hard alloy steel, aluminum alloy, copper alloy, bearing steel, etc.
560RSSZ Automatic Rockwell hardness tester is also suitable for surface hardened steel, material surface heat treatment, chemical treatment layer, copper, aluminum alloy, thin plate, galvanized, chrome plated, tin plated material, bearing steel, chilled castings, etc.
